Optical Fibre Amplifier FDQ-V11P
-
$20.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|---|
| Payment Type: | T/T,L/C |
| Certificate: | CE |

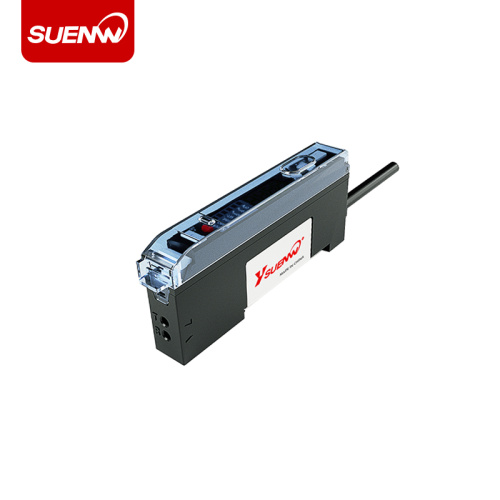

Four-Digit Digital Display FDQ-V11P Optical Fibre Amplifier (Optical Fibre Sensor)
1. High precision and high power
2. Automatic and manual calibration
3. Digital LEDs for the digital display of the received light intensity and a bar LED for detection stability
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Light Source (Luminous Wavelength) |
Red 4-Element Light Emitting Diode (625nm) |
|
Power Supply Voltage |
12 to 24V DC±10% |
|
Current Consumption |
40mA max |
|
Power Consumption |
480mW max. |
|
Control Output |
Open Collector: DC26.4V max; Load current: 100mA max; Residual Voltage: 1V max |
|
Response Time |
200μs/400μs/0.8ms |
|
Time Delay Function |
OFF: 10ms, 40ms(Fixed) |
|
Protective Circuit |
Power and output reverse connection protection; Output overcurrent and short circuit protection |
