Photoelectric Sensor SM-R25/R25P (R-Type Photoelectric Sensor PNP & Groove Photoelectric Sensor Lead-Out Type)
Photoelectric Sensor: Groove Photoelectric Sensor SM-R25/R25P (R-Type Photoelectric Sensor PNP & Groove Photoelectric Sensor Lead-Out Type)

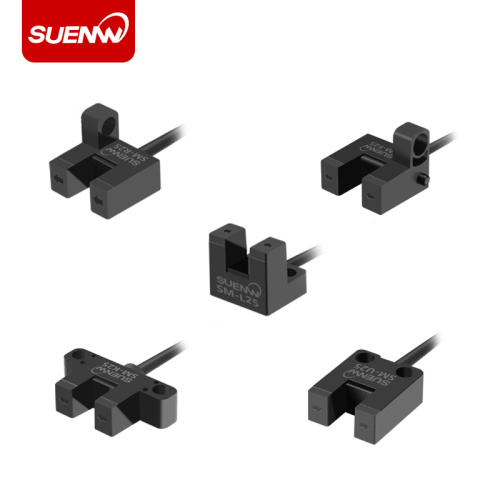

Miniature U-Shaped Photoelectric Sensors
1.Protection architecture IP65
2.Response frequency up to 2kHz
3.Four-wire, normally open/normally closed switchable as standard
4.Twist-resistant conductors as standard
5.Power reverse, output short-circuit protected
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
Sensing Method
Through-beam type
Sensing Distance
5mm(Groove width)
Minimum Sensing
1.2×0.8mm Opaque objects
Differential Travel
0.05mm max
Repeated Accuracy
0.01mm max
Light-Emitting Element
Infrared LED(Peak wavelength of projected light: 855nm; Non-modulated)
Power Supply Voltage
5 to 24V DC±10% Pulse (P-P)10% max
Current Consumption
15mA max
Control Output
Output Type
<NPN Output Type> NPN Open collector transistor
<PNP Output Type> PNP Open collector transistor
Maximum inflow current: 50mA
Maximum inflow current: 50mA
External voltage: 30V DC max(Between output and 0V)
External voltage: 30V DC max(Between output and +V)
Residual voltage: 2V max(When Inflow current is 50mA)
Residual voltage: 2V max(When Inflow current is 50mA)
1V max(When Inflow current is 16mA)
1V max(When Inflow current is 16mA)
Output Action
Light-ON/Dark-ON Equipped with 2 types of output
Action Indication
Red LED(Light up When light is received)
Response Time
Light-ON: 20μs max; Dark-ON: 80μs max
Response Frequency
1kHz min(Maximum value is 3kHz)
Environmental Performance
Ambient Illumination
On the surface of the receiver Fluorescent lamp: 1000lx max
Ambient Humidity
Operating: 5 to 85%RH; Storage: 5 to 95%RH(With no icing or condensation)
Ambient Temperature
Operating: -25 to +55℃(Be careful not to condense or freeze); Storage: -30 to +80℃
Vibration Resistant
Frequency 10 to 2000Hz 1.5-mm dual amplitude for 2h each in X, Y, and Z directions
Shock Resistance
Acceleration 15000m/s²(Approx 1500G) for 3 times each in X, Y, and Z directions
Short-circuit protection
Equipped
Protective Structure
IP65 IEC60529 Specification
Material
Case: Polybutylene Terephthalate(PBT); Slit light transmission cover(Light casting and light receiving sections): Polycarbonate
Cable
Diameter 0.09mm*4 cores Bending-resistant, oil-resistant, heat-resistant rubber cable(Maximum length 3m)
Connecting Method
Lead-out type (standard Cable length 1m)
Weight
Body weight: Approx 15g
