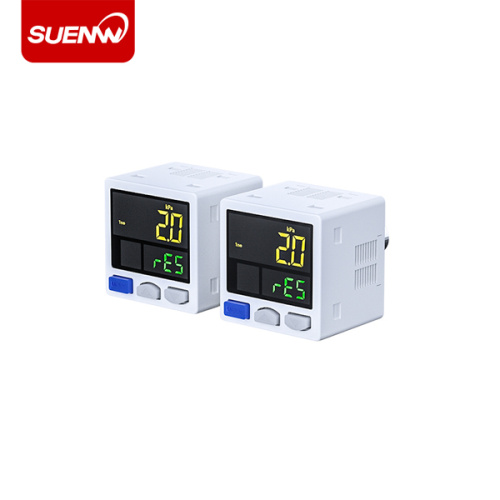

Gas Pressure Sensor SP7/SP7
-
$35.00≥5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Transportation:
- Others
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|---|
| Transportation: | Others |
Gas Pressure Proximity Sensor SP5/SNP5
- Intelligent digital display with 12 alphanumeric characters for improved visual recognition
- Automatic reference/remote zeroing function for more accurate pressure management with minimal operation
-
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Model |
SP2/SNP2 |
SP3/SNP3 |
SP5/SNP5 |
|
|
Pressure Types |
Standard pressure |
|||
|
Rated Pressure Range |
-0.1Mpa to 1.0Mpa |
-100kpa to 0kpa |
-100kpa to 100kpa |
|
|
Setting Pressure Range |
-0.1Mpa to 1.0Mpa |
-100kpa to 0kpa |
-100kpa to 100kpa |
|
|
Pressure Resistance |
1.5kMpa |
500kMpa |
500kMpa |
|
|
Applicable Fluid |
Non-corrosive gas |
|||
|
Power Supply Voltage |
12 to 24V DC |
|||
|
Current Consumption |
24V 30mA max 12V 60mA max |
|||
|
Comparison Output |
NPN O.C Output: 80mA/24VDC Max or PNP O.C Output: 80mA/24VDC |
|||
|
Repeated Accuracy |
±0.2%FS |
±0.2%FS |
±0.5%FS |
|
|
Reaction Time |
Select 2.5ms, 10ms, 25ms, 50ms, 100ms, 250ms, 500ms, 1000ms, 5000ms by button operation |
|||
|
Analog Output |
Voltage output |
0.6V to 5V(or slightly less) |
1V to 5V(or slightly less) |
|
|
Linearity: ±1%F.S Output impedance: 1KΩ |
||||
|
Current output |
2.4mA to 20mA(or slightly less) |
4mA to 20mA(or slightly less) |
||
|
Linearity: ±1%F.S Maximum load impedance, When Power supply voltage 12V: 300Ω When Power supply voltage 24V: 600Ω |
||||
|
Temperature Range |
Operating temperature: 0-50℃ Storage temperature: -10 to 60℃(With no icing or condensation) |
|||
|
Humidity Range |
35 to 85%RH |
|||
|
Temperature Characteristics |
±0.2%F.S.(25℃) |
±0.2%F.S.(25℃) |
±0.2%F.S.(25℃) |
|
|
Protection Level |
IP 40 |
|||
|
Material |
Case: Nylon+Fiberglass LED display: LCD acrylic Pressure hole: Hexagonal copper nickel plated |
|||
|
Weight |
SNP Series: Approx 80g(Barometer+User Interface Connectors) |
|||
