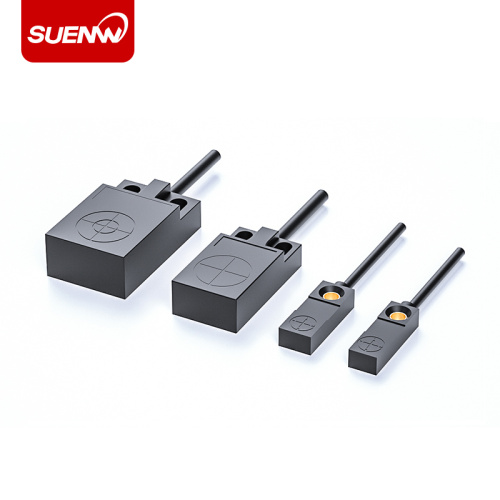

Flat Proximity Sensor SL-J1R5MN1/J1R5MN2
-
$8.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|
Flat Proximity Sensor SL-J1R5MN1/J1R5MN2:
- Among the various types of switches, there is a component that has the ability to "sense" the proximity of an object - the displacement sensor. Proximity switch(Flat Proximity Sensor/Proximity Switch Sensor Flat) use of the displacement sensor's sensitivity to the approaching object for the purpose of controlling the switch on or off.
-
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Model |
SL-J1R5□□ |
SL-J3M□□ |
SL-J5M□□ |
|
|
Maximum Sensing Distance |
1.5mm±10% |
3mm±10% |
5mm±10% |
|
|
Stable Sensing Distance |
0-1.2mm |
0-2.4mm |
0-4mm |
|
|
Standard Sensing Object |
Iron: 8*8*1mm |
Iron: 12*12*1mm |
Iron: 18*18*1mm |
|
|
Power Supply Voltage |
12 to 24V DC Pulse (p-p) 10% max |
|||
|
Current Consumption |
15mA max |
10mA max |
||
|
Control Output |
Open collector output 100mA max(DC 30V) |
|||
|
Differential Travel |
10% max of the Sensing distance |
|||
|
Differential Travel Frequency |
1kHz min |
600kHz min |
500kHz min |
|
|
Circuit Protection |
Reverse connection, surge absorption |
|||
|
Working Status Indicator |
Sensing indicator(Red LED) |
|||
|
Ambient Temperature |
Operating, Storage: -25 to +70℃(With no icing or condensation) |
|||
|
Ambient Humidity |
Operating, Storage: 35 to 95%RH(With no icing) |
|||
|
Residual Voltage |
1V max(Load: 200mA) |
1V max(Load: 50mA) |
||
|
Cable: 2m |
||||
|
Insulating Resistance |
50Ω max.(DC500V) Between current-carrying parts and case |
|||
|
Voltage Withstand |
AC 1000V 50/60Hz 1min Between current-carrying parts and case |
|||
|
Vibration |
Durable |
10 to 55Hz Complex amplitude 1.5mm each in X, Y, and Z directions 2h |
||
|
Shock |
Durable |
500m/s² each in X, Y, and Z directions 3 times |
||
|
Protective Structure |
IEC-IP67 |
|||
|
Material |
Case |
Heat resistance ABS |
||
|
Sensing Surface |
Heat resistance ABS |
|||
|
Quality |
Approx : 70g |
Approx : 80g |
||
|
Accessories |
Mounting bracket |
|||
