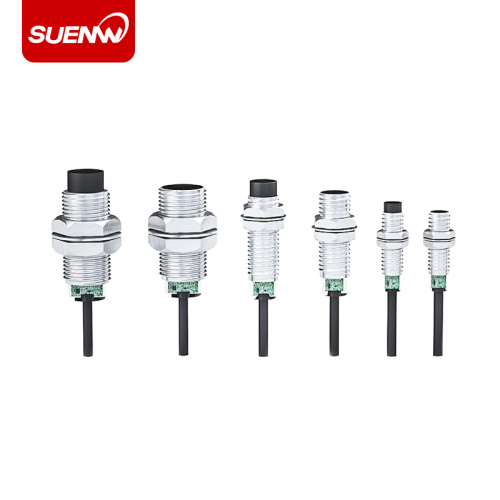

Proximity Sensor SE-M12N1/M12P1 (Inductive Cylindrical Proximity Sensors & Switch Lead-Out Sensors)
- Compared to travel switches, proximity sensors have the advantages of high positioning accuracy, reliable operation, long life, high operating frequency and the ability to adapt to harsh working environments. However, proximity sensors require a contact relay as an output when in use.
-
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Size |
M8 |
M12 |
M18 |
M30 |
|
|
Model |
SE-M8□□ |
SE-M12□□ |
SE-M18□□ |
SE-M30□□ |
|
|
Maximum Sensing Distance |
2mm±15% |
5mm±15% |
10mm±15% |
18mm±15% |
|
|
Stable Sensing Distance |
0-1.6mm |
0-4mm |
0-8mm |
0-14mm |
|
|
Differential Travel |
10% max of the sensing distance |
||||
|
Standard Sensing Object |
Iron: 12*12*1mm |
Iron: 15*15*1mm |
Iron: 30*30*1mm |
Iron: 54*54*1mm |
|
|
Power Supply Voltage |
12 to 24V DC Pulse (p-p) 10% max |
||||
|
Current Consumption |
13mA max |
||||
|
Switching Capacity |
100mA max |
||||
|
Differential Travel Frequency |
0.8kHz |
0.4kHz |
0.2kHz |
0.1kHz |
|
|
Circuit Protection |
Reverse connection, surge absorption, load short circuit protection |
||||
|
Working Status Indicator |
Action display(Red LED) |
||||
|
Ambient Temperature |
Operating: -25 to +70℃, Storage: -40 to +85℃(With no icing) |
||||
|
Ambient Humidity |
Operating, Storage: 35 to 95%RH |
||||
|
Residual Voltage |
2V max(Load: 200mA, cable length: 2m) |
||||
|
Insulating Resistance |
50M Ωmax.(DC500V) Between current-carrying parts and case |
||||
|
Voltage Withstand |
AC 1000V 50/60Hz 1min Between current-carrying parts and case |
||||
|
Vibration |
Durable |
10 to 55Hz Complex Amplitude 1.5mm each in X, Y, and Z directions 2h |
|||
|
Shock |
Durable |
500m/s² each in X, Y, and Z directions 10 times |
1000m/s² for 10 times each in X, Y, and Z directions |
||
|
Protective Structure |
IEC Specification IP67 |
||||
|
Material |
Case |
Brass |
|||
|
Sensing Surface |
PBT |
||||
|
Quality |
Approx: 55g |
Approx: 65g |
Approx: 140g |
Approx: 190g |
|
|
Accessories |
Two nuts, one toothed spacer |
||||
