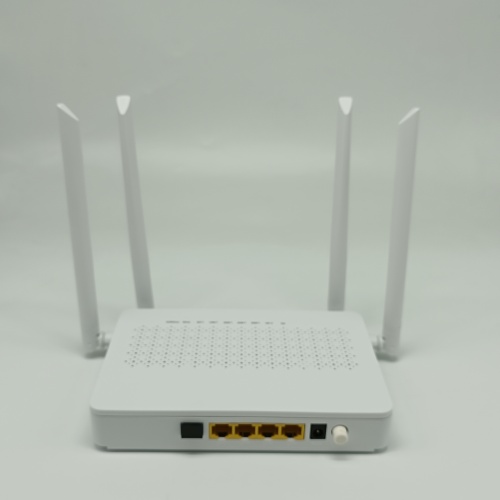

FTTH Optic Network Wifi XPON Compatible other Brands

XPON ONU with Dual Band with Wifi function supports EPON and GPON access modes, the product can automatically switch to positioning mode through the local OLT mode, GPON or EPON completion target identification features. With the advantages of good management and flexible service, expansion and network, guarantee with the group owned by OLT.

Highlights:

GEPON WIFI ONU support docking compatibility with OLT of various manufacturers

Support automatically adapt to the EPON or GPON mode used by the peer OLT

Support 2.4 and 5G Hz dual band WIFI

Support multiple WIFI SSID

Support EasyMesh WIFI function.

Support WAN PPPoE/DHCP/Static IP/Bridge mode.

Support fast transmission of hardware NAT.

Features:

Compliance with IEEE 802.3ah(EPON) & ITU-TG.984.x(GPON) standard

Compliance with IEEE802.11b/g/n/ac 2.4G & 5G WIFI standard

Support IPV4 & IPV6 Management and transmission

Support TR-069 remote configuration and maintenance

Support Layer 3 gateway with hardware NAT.

GEPON 4Ge Wifi ONU Wireless:

Interface type：External 4*2T2R External antenna Antenna gain: 5dBi

Interface maximum rate:

2.4G WLAN： 300Mbps

5.8G WLAN： 866Mbps

Pon Interface:

Interface Type: SC/APC, CLASS B+

Transmission distance: 0～20km

Working wavelength:  Up 1310nm；Down 1490nm

RX Optical power sensitivity: -27dBm

Transmission rate:

GPON: Up 1.244Gbps；Down 2.488Gbps

EPON: Up 1.244Gbps；Down 1.244Gbps
