XPON 1GE 1FE 1POTS WiFi ONU 2.4G WiFi

$25.00

10-49 Piece/Pieces
$23.00

50-99 Piece/Pieces
$21.00

≥100 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Yantian, Shekou, HongKong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000pcs/month
Supply Ability:	10000pcs/month
Payment Type:	T/T,Others
Incoterm:	FOB,EXW
Certificate:	3C,ISO9001,RHOS,CE
HS Code:	8536700000
Transportation:	Ocean,Land,Air,Express
Port:	Yantian,Shekou,HongKong

Product Description

What is ONU for WIFI?

ONU refers to optical network unit. It is the optical terminal device in the fiber access network, which provides users with multiple service interfaces. The network side of ONU is the optical interface.ONU have many models,some only for 1GE or 4GE,some have wifi and POTS and USB CATV function,ONU with WIFI functions then it is called ONU for WIFI.

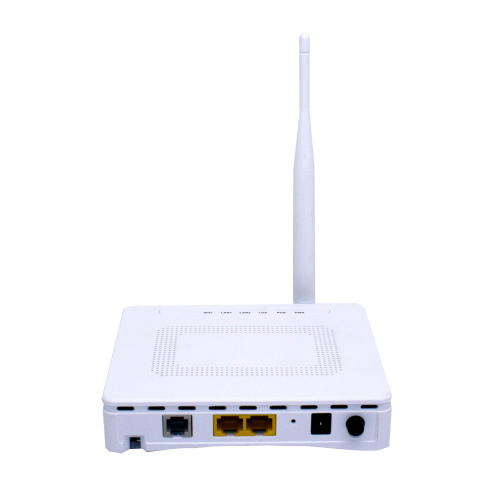

XPON Wifi Onu Product Overview

The XPON ONU series were designed and produced by our company,XPON ONU Router 1GE+1FE+1POTS+ WiFi(2.4G) is a multi-service XPON terminal product with high reliability,high quality,easy management,flexible upgrade and expansion.It is based on the mature GPON&EPON technology,highly reliable and easy to maintain,with guaranteed QoS for different service.And it is fully compliant with technical regulations such as IEEE 802.3ah and ITU-T G.984.

XPON WIFI ONU

Hardware Parameter:1.PON Port:1G/EPON Optical Interface;Single Fiber:1*SC/UPC Fiber;2.Upstream Rate:GPON:1.244Gbps EPON:1.25Gbps;3.Downstream Rate: GPON:2.488Gbps EPON:1.25Gbps;4.Type: BOSA;5.Wavelength:Tx 1310nm,Rx 1490nm;6.Optical Output Power:GPON:+0.5~+5dBm EPON:-1~+4dBm;

7.Sensitivity:GPON:-28dBm EPON:-26dBm;8.Overload:GPON:-8dBm EPON:-3dBm;9.LAN:1*10/100/1000Mbps and 1*10/100Mbps;Full / Half-Duplex,RJ45,Auto-MDI/MDI-X;10.POTS:1 FXS,RJ11;11.Wireless:IEEE802.11b/g/n,300Mbps,2T2R,2 External;12.Shell:Plastic casing;13.Power:External DC 12V/1.5A power supply adapter;14.Power Consumption:<9W;15.Size:160*114*29MM;16.Weight:<0.3kg;17.Operating Temperature:0～50℃;18.Storage Temperature:-40～85℃
