4LAN (1GE+3FE) + 300Mbps WiFi Gepon ONU

$21.00

10-99 Piece/Pieces
$20.00

100-299 Piece/Pieces
$19.00

≥300 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, OTHERS

Port:: Shenzhen, Shekou, Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000pcs/Month
Supply Ability:	10000pcs/Month
Payment Type:	T/T,Paypal
Incoterm:	EXW,FOB
Certificate:	CE,ROHS,3C
HS Code:	8517622990
Transportation:	Ocean,Land,Air,Express,OTHERS
Port:	Shenzhen,Shekou,Yantian

Product Description

What are the characteristics of GEPON ONU equipment?
A variety of uplink interface options, flexible application, various user interface types, convenient access, energy saving, environmental protection, green communication, power supply mode can be adjusted according to demand, easy operation and maintenance save manpower, provide link monitoring and fault alarm, remote version upgrade and business recovery.

1*PON port (1.25G&2.5G)

XPON ONU Product Description:

GEPON 1GE+3FE+1POTS+WiFi+USB ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a EPON/GPON Gigabit Ethernet products. The box is based on the mature Gigabit EPON/GPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

XPON 1GE 3FE ONT

Wifi ONU Special Features:

► Dual Mode( can access gpon/epon olts ).
► Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
► Integrated OAM remote configuration and maintenance function.
► Support rich QinQ VLAN functions and IGMP Snooping multicast features.
► Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
► Support 802.11n WiFi(2T2R) function.
► Support NAT, Firewall function.
► Support IPv4 and IPv6 dual stack.
► Integrated line testing compliant with GR-909 on POTS.

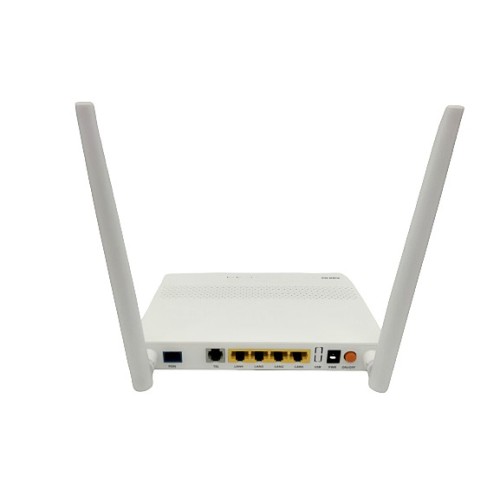

White Plastic Case With 2.4G WIFI ONT

POTS ONU Technical Parameters:

Technical item	1GE+3FE+1POTS+WiFi+USB
PON interface	1 E/GPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving saturation:≥-8dBm Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
LAN interface	1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless	Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM
POTS interface	1 FXS, RJ11 connector Support: G.711/G.723/G.726/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909
USB interface	USB 2.0
LED	13, For Status of PWR、PON 、LOS、WAN、WiFi、FXS、ETH1~4、WPS、USB.
Operating condition	Temperature: 0℃～+50℃ Humidity: 5%～90%（non-condensing）
Storing condition	Temperature : -30℃～+75℃ Humidity :5%～90%（non-condensing）
Power supply	DC 12V,1/1.5A
Power consumption	≤10W
Dimension	205mm×140mm×37mm（L×W×H）
Net weight	0.34Kg
