What are the main technical indicators of the XPON network?

(1) System capacity:The system has a large-capacity IP switching core (30G) to provide a 10G Ethernet network interface,and each OLT can support 36 PON networks.

(2) Multi-service interface: Support TDM,ATM,Ethernet,CATV,and provide strict QoS guarantee,which can fully include existing services.It truly supports the smooth upgrade of the business.

(3) System high reliability and availability requirements:The system provides an optional 1+1 protection switching mechanism to fully meet the requirements of the telecommunication network for network reliability,and the switching time is less than 50ms.

(4) Network range:configurable 10,20Km network path,fully meet the requirements of the access network.

(5) Unified system management software platform:For different access methods,have a unified network management platform

Product Overview:

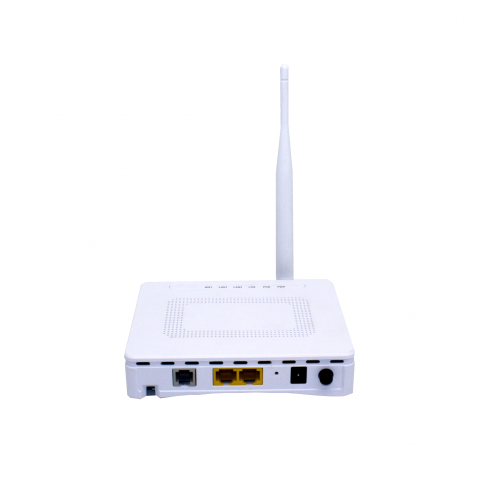

The XPON ONU series were designed and produced by our company,XPON ONU 1GE+1FE+1POTS+ WiFi(2.4G) is a multi-service XPON terminal product with high reliability,high quality,easy management,flexible upgrade and expansion.It is based on the mature GPON&EPON technology,highly reliable and easy to maintain,with guaranteed QoS for different service.

Hardware Parameter:

1. PON Port: 1 G/EPON Optical Interface; Single Fiber: 1*SC/UPC Fiber

2. Upstream Rate: GPON: 1.244Gbps EPON: 1.25Gbps

3. Downstream Rate: GPON: 2.488Gbps EPON: 1.25Gbps

4. Type: BOSA

5. Wavelength: Tx 1310nm, Rx 1490nm

6. Optical Output Power: GPON: +0.5~+5dBm EPON: -1~+4dBm

7. Sensitivity: GPON: -28dBm EPON: -26dBm

8. Overload: GPON: -8dBm EPON: -3dBm

9. LAN: 1*10/100/1000Mbps and 1*10/100Mbps; Full / Half-Duplex, RJ45, Auto-MDI/MDI-X

10. POTS: 1 FXS, RJ11

11. Shell: Plastic casing

12. Power: External DC 12V/1.5A power supply adapter

13. Power Consumption: <9W

14. Dimensions: 160mm(L)*114mm(W)*29mm(H)

15. Weight: <0.3kg

16. Operating Temperature: 0～50℃

17. Storage Temperature: -40～85℃

18. Operating Humidity: 10%～90% (Non-condensing)

19. Storage Humidity: 10%～90% (Non-condensing)

VOIP Feature:

1. Call Protocol: SIP, seamless compatible with all popular call agent

2. Voice Coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent

3. IP Address Assignment: Dynamic PPPoE/DHCP Client and static IP

4. Call Loss: Less than 0.01%

5. Function-1: Integrate heartbeat function and support active/standby call agent

6. Function-2: Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length

7. Function-3: Support high/low speed fax, bypass fax, and T38 fax

8. Function-4: Support RFC2833 and redundant RFC2833, difference rings, MD5

9. Function-5: authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service

10. Function-6: Multi-party conferencing

11. Function-7: Line testing according to GR-909

WIFI Feature:

1. Operating Mode: Router or bridge

2. Antenna Gain: 5dBi

3. Frequency: 2.412 ~ 2.472 GHz

4. Channel: 13*Channel

5. Modulation: DSSS, CCK and OFDM

6. Coding: BPSK, QPSK, 16QAM and 64QAM

7. RF Receive Sensitivity:

8. RF Output Lever:

9. Encryption Mode: 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)
