XPON ONU 1GE FTTH FTTB FTTO

$7.10

100-199 Piece/Pieces
$7.00

200-499 Piece/Pieces
$6.90

≥500 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, others

Port:: SHEKOU, YANTIAN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50000/Month
Supply Ability:	50000/Month
Payment Type:	T/T
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,3C
HS Code:	8517622990
Transportation:	Ocean,Land,Air,Express,others
Port:	SHEKOU,YANTIAN,SHENZHEN

Product Description

Company Profile

XPON ONU router 1GE meets the needs of telecom operation FTTH/FTTD/FTTO and has SOHO access, video surveillance, etc., and G/EPON Gigabit Ethernet products, and the framework is based on mature XPON ONU technology, which has high reliability, can be easily maintained, and provides guaranteed service QOS. Fully compliant with technical regulations such as ITU-T G 984.X and IEEE2.3ah.

• itu-.984 standard

>Support Ethernet service layer two switching and line speed forwarding of upstream and downstream services.

>Support frame filtering and suppression, support standard 802.1q Vlan function, support Vlan conversion.

>Support 4094 vlans (802.1q), support dynamic bandwidth allocation function (DBA).

>Support remote reset and restart functions

>Support restore factory parameters function, support data encryption

>Support GPON, EPON acces

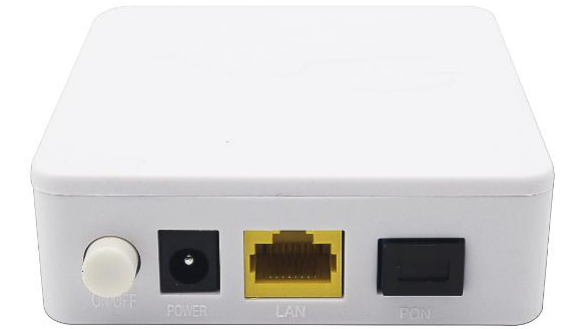

Port characteristics： The order from left to right is：

• PON port：Connect the source end OLT device via a fiber optic .

• RJ45 port：The equipment is connected to the user side through twisted pair, and the rate is 10/100/1000m adaptive

• Power Interface：Connect external power supply .

• Power switch button.

• Reset Button ：Returns the factory default.Press the fine needle into the hole for more than 8 seconds and the system will return to the factory defaul.

Optical property：

>Support WDM single fiber bidirectional (single fiber three way) transmission

>Interface type: SC/PC >Maximum spectroscopic ratio: 1:32

> Rate: 2.5 Gbps / 1.25 Gbps >Transmission wavelength: 1310 nm

>Receiving wavelength: 1490 nm >Output optical power: -1~+4dBm

>Receiving sensitivity: < -26dbm >The maximum distance OLT to ONU is 20km

Other features：

Certification: in accordance with CE, FCC, ROHS and other standards

EMC / EMI :Comply with VCCI Class B, FCC Part 15b standard

security：Comply with UL 60950 safety specification

Lightning protection against surge voltage protection：Itu-t k. 21 standard
