XPON ONU 4GE 1POTS WIFI 2USB

$35.00

10-99 Piece/Pieces
$34.50

≥100 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	50000
Payment Type:	T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

How to distinguish single frequency and dual frequency WIFI?

Comparing these two identifiers (802.11b/g/n and 802.11a/b/g/n), it is obvious that there is only a difference of "a" between the two. Although this "a" is actually useless, 802.11a is basically eliminated, but we can see from the development history of WIFI that 802.11a is defined in the 5GHz frequency band, so this "a" indicates that this network card can be used in 5G Work. There is a difference between the operation on the 5G frequency band and the operation on the 2.4 frequency band. 802.11n can work on either the 2.4G frequency band or the 5G frequency band. Therefore, it is impossible to determine whether this network card is a dual-band network card by just looking at "n". But "a" can only work on the 5G frequency band, so those with this logo must be dual-band.

Dual Band XPON ONU, also named as 5.0G WIFI XPON ONU, 2.4G+5.0G WIFI XPON ONU, WIFI XPON ONU with 2.4G and 5.0G, XPON ONU with Dual Band, Dual Band WIFI XPON ONU, etc., is one of the most commonly applied equipment in construction of PON (Passive Optic Network).

Product Overview:

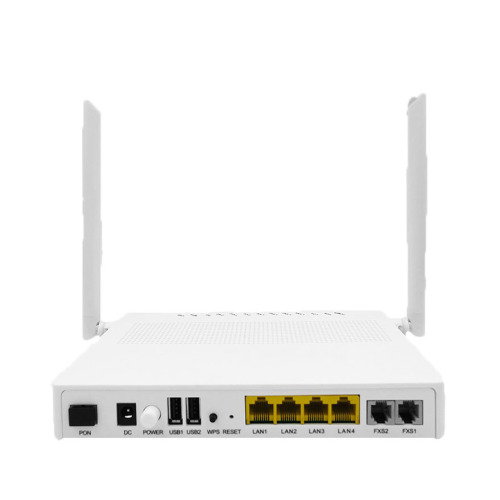

GL-GE8004U-RW is a 4ethernet port and 2VoIP port broadband home gateway device for FTTH solution. EPON/GPON technology has been adopted to provide UWB access for Family/Enterprise’s User, Strong data processing capability, provides quality experience for the Internet, HD video and VoIP services.

5.0g Wifi Gpon Onu

Product Functional Features:

Product follow IEEE 802.3ah（EPON）、G.984（GPON）international standard，People's Republic of China communication industry standard（YD/T 1475-2006），And China Telecom PON equipment technical requirements，Good interoperability and operability.，It can achieve interconnection and interoperability with OLT equipment of the mainstream manufacturers in the industry.
Integrate 2.4G 2*2 300Mbps (802.11n) and 5G 2*2 867Mbps (802.11ac)WiFi Function，provide high-speed wireless network access for mobile devices.
Configuration is convenient plug-and-play network management can automatically distribute network business configuration can also be through the local Web page for business configuration conducive to efficient operation and maintenance.
Built in three layer routing and local gateway，provide all kinds of high level protocol data processing functions.
Customized functions software functions can be customized according to business needs help network operation and development.

Gl Ge8004u Rw 4ge 2pots Wifi 2usb

Product Specification：

PON Interface: 1 G/EPON port(EPON PX20+ and GPON ClassB+)
PON Interface: Receiving sensitivity:≤-27dBm
PON Interface: Transmitting optical power:0~+4dBm
PON Interface: Transmission distance:20KM
Wavelength: TX: 1310nm RX:1490nm
Optical Interface: SC/PC Connector
POTS interface: 2 FXS RJ11connector
POTS interface: Support: G.711/G.723/G.726/G.729codec Support: T.30/T.38/G.711 Fax mode DTMFRelay Line testing according toGR-909
LAN Interface: 4 x 10/100/1000Mbps Ethernet interfaces. Full/Half RJ45connector
Wireless: Compliant withIEEE802.11b/g/nIEEE802.AC
Wireless: Operating frequency:2.400-2.4835GHz/5GHZ
Wireless: support MIMO rate up to300Mbps/867Mbps
Wireless: 2T2R2 external antenna5dBi
Wireless: Support: multiple SSID
Wireless: Channel: Auto
Wireless: Modulation type: DSSS CCK and OFDM
LED: 12 For Status of POWER、LOS、PON、SYS、LAN1、LAN2、WIFI、WPS、Internet、FXS
