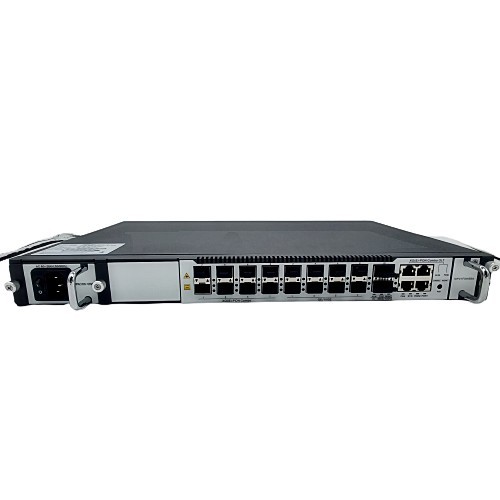

16PORT XGSPON OLT 10GE SFP

Due to the relatively simple construction of WIFI equipment, convenient operation, low cost, coupled with the needs of many indoor office links and life links, many public indoor environments will be covered by WIFI signals, and WIFI is essential in private indoor environments. Obviously, WIFI based indoor positioning in the many indoor positioning methods, is the easiest to achieve, but also the most close to People's Daily production and life. In order to reduce the cost as much as possible, without adding too much additional equipment, but also to meet people's requirements for indoor positioning, more and more experimental research and commercial applications choose this method as the key point of research.

XG(S)-PON OLT is highly integrated, medium-capacity GPON OLT for operators, ISPs, enterprises and park applications.The product follows the ITU-T G.984/G.988 technical standard，The communication industry standard of the People's Republic of China "Access Network Technical Requirements - Gigabit Passive Optical Network (GPON)" and China Telecom's GPON equipment technical requirements CTC2.0 standard, can be compatible with G/XG/XGS three modes at the same time. Among them, the asymmetric system (2.5Gbps uplink, 10Gbps downlink) is called XGPON, and the symmetrical system (10Gbps uplink, 10Gbps downlink) is called XGSPON. The product has good openness, strong compatibility, high reliability, complete software functions, and cooperates with the optical network unit (ONU) to provide users with access to various integrated services such as broadband, voice, video, and monitoring.

The compact design not only simplifies deployment but also optimizes rack space, presenting a solution that is both practical and resource-saving.

Optical Fiber system usually consists of Olt Device at the office side, ONU and ODN at the user side, and adopts a point-to-multipoint network structure. ODN is composed of passive optical components such as single-mode optical fibers, optical splitters, and optical connectors, and provides optical transmission media for the physical connection between OLT and ONU.

System management:

Support Console/Telnet/SSH2.0 command line configuration Support WEB browser configuration management

Support FTP, TFTP file upload and download management

Support SNMP V1/V2/V3 RMON

Support Support SNTP clock

Support system work log Support LLDP Neighbor Discovery Protocol

Support 802.3ah Ethernet OAM

Support RFC 3164 Syslog function

Support Ping and Traceroute
