What are the parts of the network with OLT?

Can be divided into three parts
Core part: including aggregation and distribution, business processing and ODN adaptation functions
Service part: Provide service interface functions, including interface adaptation, interface protection, etc., as well as signaling processing and media transmission format conversion functions for specific services when needed
Public part: including power supply and OAM functions

OLT Device is one of the most commonly used fiber optic equipment, which is also known as network device and FTTB FTTX equipment. Among these, one of the most commonly seen is EPON OLT. EPON OLT usually have uplink port and downlink port which supports data transfer, which is very important to WEB management function of OLT.

Product Description

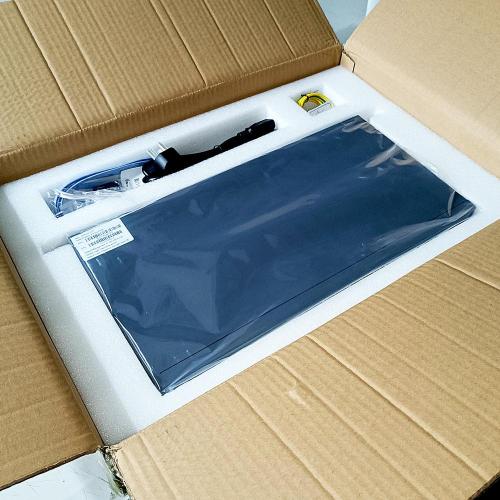

EPON 4-port OLT is a 1U rack-mounted central office device with three-layer function developed by Shenzhen GL-COM Technology Co., Ltd. in the industry.It has the characteristics of dexterity, easy deployment, and high performance to meet the user's requirements for device performance and size in different environments. It also supports WEB, Telnet, and SSH to provide users with stable, efficient, and value-added network access services. The product is suitable for networks such as "three networks in one", optical fiber access of the resident network, security monitoring network, corporate LAN and other networks, with extremely high cost performance. EPON 4-port OLT equipment provides 4 EPON service ports, 2 Gigabit Ethernet ports, and 2 SFP Gigabit optical ports. It supports the access of up to 256 EPON ONU users with a split ratio of 1:64.

Main Features

1. Fully open platform: Compatible with ONU access of mainstream brands

2. Flexible management: Support Telnet/CLI/WEB management

3. Cost-effective: 1u highly compact design. Using mainstream high-performance chip solutions

Product Specification

1. Case: Frame: 1U 19-inch standard box

2. 1000M Uplink Port: 2*10/100/1000M auto negotiation + 2*SFP (Independent) slot

3. EPON Downlink Port: 4*SFP slot; 1000BASE-PX20 +; Maximum Split Ratio 1:64

4. Management Port: 1*10/100BASE-T out-of-band port + 1*CONSOLE port

5. Transmission Distance: 20KM

6. EPON Port Speed: Symmetrical 1.25Gbps

7. Wavelength: TX 1490nm, RX 1310nm

8. Connector: SC / PC

9. Fiber Type: 9 /125μmSMF

13. Management Mode: SNMP, Telnet and CLI, EMS and WEB

14. Management Functions:

1) Port status monitoring and configuration management

2) Layer 2 switch configuration, such as VLAN, RSTP, IGMP, QOS, etc.

3) EPON management functions: DBA, ONU authorization, ACL, QOS, etc.

4) Online ONU configuration and management

5) User Management

6) Alarm management

15. Layer 2 Switch:

1) 16K Mac address

2) Support 4096 VLANs

3) Support port VLAN and protocol VLAN

4) Support Vlan translation and QinQ

5) Support port-based storm control

6) Support port isolation

7) Support port rate limit

8) QOS is based on port, VID, TOS and MAC address

9) ONU switch is in the same PON

16. Multicast: IGMP snooping; 256 IP multicast groups

17. EPON Function:

1) Support port-based rate limiting and bandwidth control

2) The transmission distance can reach 20KM

3) Support data encryption, multicast, port VLAN, separation, RSTP, etc.

4) Support dynamic bandwidth allocation (DBA)

5) Support ONU automatic discovery/link detection/software remote upgrade

6) Support ACL and SNMP to flexibly configure packet filtering

7) Support EMS online dynamic distance calculation

18. Dimension (L*W*H): 442mm*200mm*43.6mm

19. Weight: 4.2kg

20. Power Supply: 220VAC; AC: 90~264V, 47/63Hz; Support dual hot backup

21. Energy Consumption: 30W

22. Operating Temperature: -10~+ 55℃

23. Storage Temperature: -40~+ 85℃

24. Relative Humidity: 5~90% (non-regulated)
