4PON Ports Epon Olt For FTTH

What is EPON OLT?

EPON OLT is a device that acts as the service provider endpoint of a passive optical network. It means that the optical line terminal (OLT) supports Ethernet Passive Optical Network (EPON) that a kind of technology provides multiple services by adopting point to multipoint passive optical transmission.

 A EPON network consists of an Optical Line Terminal (OLT) at the service provider’s central office and a number of Optical Network Units (ONUs) near end users.

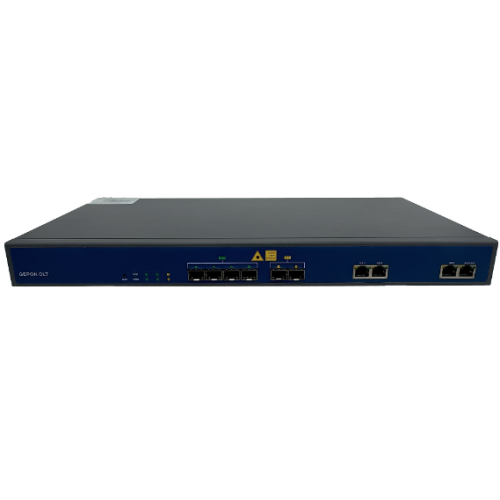

EPON 4 Port OLT Product Description

EPON 4-port OLT is a 1U rack-mounted central office device with three-layer function developed by Shenzhen GL-COM Technology Co., Ltd.in the industry.It is compatible with mainstream manufacturers ONU,it is convenient to construct EPON network flexibly and efficiently.It has the characteristics of dexterity,easy deployment,and high performance to meet the user's requirements for device performance and size in different environments.It also supports WEB,Telnet,and SSH to provide users with stable,efficient,and value-added network access services.The product is suitable for networks such as"three networks in one",optical fiber access of the resident network,security monitoring network,corporate LAN and other networks,with extremely high cost performance.EPON 4-port OLT equipment provides 4 EPON service ports,2 Gigabit Ethernet ports,and 2 SFP Gigabit optical ports.It supports the access of up to 256 EPON ONU users with a split ratio of 1:64.

EPON Olt Product Specification

1) Port status monitoring and configuration management;

2)Layer 2 switch configuration,such as VLAN,RSTP,IGMP,QOS,etc.

3)EPON management functions: DBA,ONU authorization,ACL,QOS,etc.

4)Online ONU configuration and management

5)User Management

6)Alarm management

Multicast: IGMP snooping;256 IP multicast groups

Size:442*200*43.6mm

Weight:4.2kg

Power Supply:220VAC; AC:90~264V,47/63Hz;Support dual hot backup

Energy Consumption:30W;22.Operating Temperature:-10~+ 55℃;23.Storage Temperature: -40~+ 85℃;24.Relative Humidity:5~90% (non-regulated)

4 Port Olt Packing details:
