What is the current state of POE ONU?

POE refers to a power-over-Ethernet technology that supplies power to equipment through a network cable. It has been widely used in recent years and is liked by engineering companies because it does not require additional wiring.

Industrial Grade ONU is also known as PD ONU, POE ONU, Reverse POE ONU, etc. that can satisfy Client-power Supply through POE Power.

Product Overview:

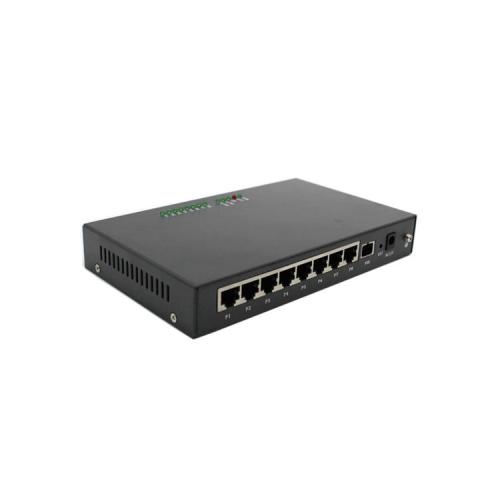

E8008U-PD series are based on client-power supply switch designed for the carrier-class access ONU. All series can provide client-power supply, two-story wire-speed forwarding capability, strong security features, low-power quiet fan-less design and a strong awareness capacity function, which can realize passive access network programs from OLT to passive optical splitter. The series targeted at the business applications of enterprise and carrier networks which is hard to get power. It also serves as energy-saving access and high security access solutions.

Product Specification:

• Backplane capacity: 3.2 bps
• Switching capacity: 3.2 G
• Throughput: 2.68Mpps
• Memory: 4MB SDRAM Memory and 2MB Flash Memory
• Power supply: All ports support client-power supply
• Power supply: The average distribution of power into the multiple terminal users
• Power supply: Port power calibration feature
• Power consumption: Full-load ≤9W  Idle ≤6W
• Outline dimensions  (W*D*H): 184mm x 94mm x 27 mm
• Weight (in maximum configuration): ≤3kg
• Working temperature：-15°C～55°C
• Storage temperature：-40°C～70°C
• Relative humidity：10%～90%，no condensing.

Business Features:

Passive optical network (PON) accessing features:

Packaging Details:
