Reverse POE ONU 8FE Optical Device

$39.00

10-49 Piece/Pieces
$38.00

50-99 Piece/Pieces
$35.00

≥100 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, s

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50000
Supply Ability:	50000
Payment Type:	T/T
Incoterm:	FOB,EXW
Certificate:	CE, ROHS, FCC
HS Code:	8517622990
Transportation:	Ocean,Land,Air,Express,s
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

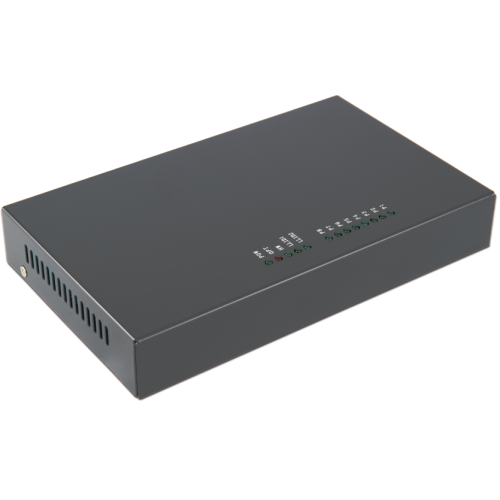

8FE Reverse POE ONU

What is the advantage of POE ONU?

The poe function is the power supply function, unlike before, you need to install the power supply one by one, so there is no need to pull the power supply separately. It's more convenient and simple.

Industrial Grade ONU is also known as PD ONU, POE ONU, Reverse POE ONU, etc. that can satisfy Client-power Supply through POE Power.

8fe Pd Onu

Product Overview:

E8008U-PD series are based on client-power supply switch designed for the carrier-class access ONU. All series can provide client-power supply, two-story wire-speed forwarding capability, strong security features, low-power quiet fan-less design and a strong awareness capacity function, which can realize passive access network programs from OLT to passive optical splitter. The series targeted at the business applications of enterprise and carrier networks which is hard to get power. It also serves as energy-saving access and high security access solutions.

poe switch vlan

Product Specification:

Backplane capacity: 3.2 bps
Switching capacity: 3.2 G
Throughput: 2.68Mpps
Memory: 4MB SDRAM Memory and 2MB Flash Memory
Power supply: All ports support client-power supply
Power supply: The average distribution of power into the multiple terminal users
Power supply: Port power calibration feature
Power consumption: Full-load ≤9W Idle ≤6W
Outline dimensions (W*D*H): 184mm x 94mm x 27 mm
Weight (in maximum configuration): ≤3kg
Working temperature：-15°C～55°C
Storage temperature：-40°C～70°C

Relative humidity：10%～90%，no condensing.

8pon switch

Business Features:

Passive optical network (PON) accessing features:

1. IEEE 802.3ah EPON standard
2. GEPON Intercommunication standard for China Telecom/China Unicom
3. 20Km transmission distance for single optical fiber
4. 128Bits triple churning encryption for up-down link
5. Standard and extensive OAM management
6. ONU software batch/ timely/real-time updating

7. Luminous power of PON port can accept luminous power detection.
