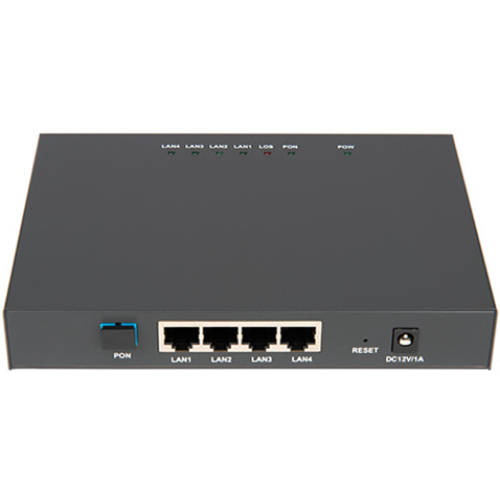

POE ONU GPON 4 Port 4 Gigabit

$49.00

10-49 Piece/Pieces
$47.00

50-99 Piece/Pieces
$43.00

≥100 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	500000
Supply Ability:	5000/Month
Payment Type:	T/T
Incoterm:	FOB,EXW
Certificate:	CE,Rohs,3C
HS Code:	8517622990
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

The difference between GL-E8031U-DN and GL-E8031U-DR-P

GL-E8031U-DN is Metal case EPON 4GE ONU,with Cortina chipset.GL-E8031U-DR-P is Metal case EPON 4GE POE ONU,with Realtek chipset.The only difference is for POE Function.This 2 models ONU use for project FTTB FTTC ,all use Iron/Metal case.The 2 models of this ONU sell very well in Chinese Mainland,warmly welcomed to ISP/Project using customers.Recently we have got some inquiry from abroad,which is to say outside China project using customer or ISP customers also need this ONU.

POE ONU

POE ONU Product overview：

The GPON ONT optical network unit GL-G8031U-DR-P is a single-family unit (SFU) that integrates strong interoperability, key customer specific needs and low cost to provide triple-play services to users of FTTB applications.GL-G8031U-DR is equipped with 2.5G rate downstream interface and 1.25G rate upstream interface in accordance with ITU-T G.984 standard, which can provide a comprehensive triple play service, including voice, video (IPTV or VoD) and high-speed Internet Access service.The GL-G8031U-DR optical network unit provides a management channel that conforms to the standard OMCI definition, can achieve remote management, and supports a full range of FCAPS monitoring and maintenance functions.Can provide 4-way POE power supply function, support IEEE802.3af, IEEE802.3at standards.

Product specifications:

Item	GL-G8031U-DRP
Hardware interface	>4 *10/100/1000 Base-T RJ-45 ethernet interface >Ethernet port auto-negotiation or manual configuration >MDI/MDIX Automatic detection function >Upstream and downstream directions based on hardware priority queue support service classification（CoS）
Power	>+12V（Provided by external AC / DC power converter） >2-PIN Power converter input >Support Dying Gasp >Power button
Power consumption	<8W(Power consumption without POE calculation)
Dimensions	240mm x117mm x30mm (W x D x H)
Full weight	0.28kg
Environmental parameters	Temperature： 0℃~ 50℃ Humidity： 5% ~ 95% Relative humidity

Characteristics：

Business	Achieve
GPON characteristic	Compliant with ITU-T G.984 GPON standard Support GEM Encapsulation mode Support DBA（Dynamic Bandwidth Assignment） Support 40 T-CONT and 256*GEM Port Support Class B+ Optical power budget Support VLAN-to-GEM Port mapping Support FEC（Forward Error Correction） Realize embeded OAM（Operations，Administration and Maintenance），PLOAM（Physical Layer OAM），OMCI Support Downstream 128 bit AES（Advanced Encryption Standard）encryption Support power failure alarm
VLAN	Support port-based VLAN and IEEE 802.1Q VLAN Support full range VID and PVID Support setting tag attribute based on port + VLAN
Broadcast storm suppression	The number of broadcast messages can be set
STP	Support IEEE 802.1d/1s/1w Spanning Tree Protocol
Port aggregation	Support
Bandwidth control	Support 64K to 100M, send and receive separately controlled
Mirror	Support port mirroring function
QoS	Support priority based on port / 802.1p / IP-TOS Support 4 levels of priority control
Upgrade	Support Xmodem、 TFTP Protocol upgrade
Management	Support Telnet Remote configuration Support SNMP management Support WEB management
Security features	Support centralized authentication of user passwords for administrators Support port lock, can limit the number of MAC addresses per port Support 802.1x
Maintenance	Support debugging information output Support PING Support system log
