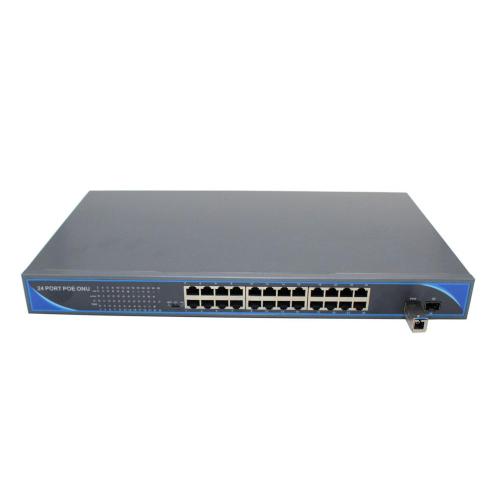

Industrial Grade 24 10/100M POE ONU

The difference between ONU and Router:

ONU is the device for fiber-to-the-home. It has optical port, Ethernet ports,telephone ports and CATV ports,also have wifi.

A router is a device that selects and forwards data packets between different networks. Generally, the home is an internal local area network, and the router exit is the public network address, which is connected to the Telecom Unicom network.

Product overview：

It is an EPON upstream,24*1000M electrical ports with POE power supply function,a POE ONU specially designed for security.The ONU can directly provide users with IP data access.Based on the mature,stable and cost-effective EPON technology,it provides a PON interface and 24 100/1000M adaptive electrical interfaces. It adopts single fiber wavelength division multiplexing technology,only one optical fiber is connected to the OLT,the maximum transmission distance can reach 20 kilometers, and it supports the power-down reporting function.The 24 POE electrical ports have the function of automatically detecting and identifying PD devices and powering them,so there is no need to worry about damaging PoE or non-PoE devices of private standards. It is an ideal choice for economical use of PoE to deploy wireless access points (AP) and IP-based network surveillance cameras for small business networks.It can effectively solve the problems of cumbersome maintenance,wireless coverage,terminal equipment power supply,and security monitoring engineering chief,saving engineering costs to the maximum.

Product Features:

>Support symmetrical 1Gbit/s rate

>Support downstream three-fold agitation, support AES128 decryption function

>Support synchronous Ethernet function, support SBA and DBA bandwidth allocation

>Support Dying-Gasp detection and reporting

>Support mainstream ONU detection

>Support flexible tag processing, compatible with CTC2.1,TR156 requirements

>Support L2,L3 (IPv4/6) multicast forwarding, support multiple forwarding methods,including: DMAC,DMAC +VLAN,DIP,IP+SIP,DIP+VLAN,DIP+SIP+VLAN

>Support QOS function

>Adopt single fiber wavelength division multiplexing technology,only need one optical fiber to connect with OLT,the transmission distance can reach 40 kilometers\

>Installation and maintenance are easy to do,support local/remote multiple methods for management configuration and software upgrades,and cooperate with the central office OLT to achieve remote fault diagnosis and location functions,greatly reducing maintenance workload

>The 100M electrical port supports power supply through wireless access points (AP) and network surveillance cameras via Category 5 Ethernet cables

>Store-and-forward exchange mechanism

>With power circuit protection function to protect the safety of back-end equipment

>Support loop detection

>Support port no connection power saving function

Specifications：
