EPON POE ONU 4GE Iron Casing POE

$48.00

10-49 Piece/Pieces
$46.00

50-99 Piece/Pieces
$42.00

≥100 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	500000
Supply Ability:	5000/Month
Payment Type:	T/T
Incoterm:	FOB,EXW
HS Code:	8517622990
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

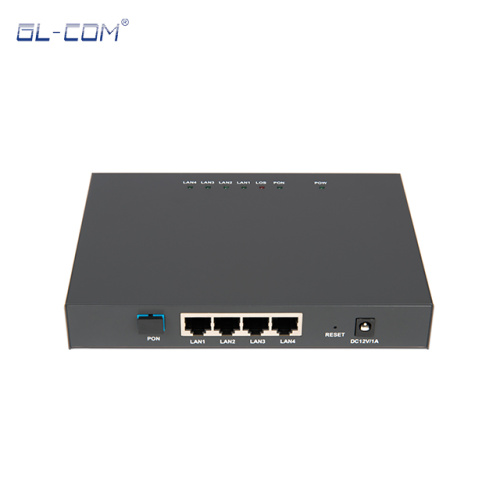

EPON POE ONU 4GE iron casing POE

What is POE？

POE (Power Over Ethernet) refers to the use of IP-based terminals (such as IP phones, wireless LAN access points APs, network cameras) without any changes to the existing Ethernet Cat.5 cabling infrastructure. Etc.) While transmitting data signals, it can also provide DC power supply technology for such devices.

Product overview：

EPON ONU optical network unit GL-E8031U-DR-P, as a single household unit (HGU), integrates strong interoperability, specific needs of key customers and low cost, providing users of FTTB applications with triple play services .The GL-E8031U-DR-P optical network unit provides a management channel that conforms to the standard OMCI definition, can realize remote management, and supports the monitoring and maintenance functions of a full range of FCAPS.

POE power supply characteristics:

>Support IEEE802.3a and IEEE802.3at

>MSCC automatic extension, semi-automatic, automatic mode

>Maximum output power:25W;

>Working temperature: -10 degrees to 85 degrees

>Built-in 3.3V and 5V voltage regulator

4ge Poe Onu

Product specifications:

Item	GL-E8031U-DR-P
Hardware interface	4 *10/100/1000 Base-T RJ-45 Ethernet interface Ethernet port auto-negotiation or manual configuration MDI/MDIX Automatic detection function Hardware-based priority queues for upstream and downstream directions support service classification（CoS）
Power supply	+12V（Provided by external AC/DC power converter） 2-PIN Power converter input support Dying Gasp Power on/off
Power consumption	<6W
size	240mm x117mm x30mm (W x D x H)
weight	0.28kg
Environmental parameters	Temperature： 0℃~ 50℃ Humidity： 5% ~ 95% Relative humidity

Business characteristics：

Business	Realize
EPON characteristic	Confirm to IEEE802.3 EPON MAC standard Support bandwidth control Support downstream traffic decryption Support Class B+ Optical power budget Bandwidth US:1.25G/DS:1.25G Support FEC（Forward Error Correction） Support Strict priority(SP) and Weighted fair queuing(WFQ) mode Support Power failure alarm
VLAN	Support port-based VLAN and IEEE 802.1Q VLAN Support Full rangeVID and PVID Support Port-based＋VLAN Set tag attributes
Broadcast storm suppression	Can set the number of broadcast messages
STP	Support IEEE 802.1d/1s/1w Spanning Tree Protocol
Port aggregation	Support
Bandwidth control	Support 64K to 100M，Send and receive separate control
Mirror	Support Port mirroring function
QoS	Support priority based on port/802.1p/IP-TOS Support 4-level priority control
Upgrade	Support Xmodem、 TFTP Protocol upgrade
Management	Support Telnet Remote configuration Support SNMP management Support WEB management
Safety features	Support centralized authentication of administrator's user password Support port lock, can limit the number of MAC addresses per port Support 802.1x
Maintain	Support debugging information output Support PING Support system log
