Highly Reliable Case EPON 8PON OLT
-
$632.0010-99 Piece/Pieces
-
$630.00100-999 Piece/Pieces
-
$628.00≥1000 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Shekou, Yantian
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 1000 |
Supply Ability: | 50000/momth |
Payment Type: | T/T |
Incoterm: | EXW,FOB |
Certificate: | CE,ROHS,FCC |
HS Code: | 8517622990 |
Transportation: | Ocean,Land,Air |
Port: | Shenzhen,Shekou,Yantian |

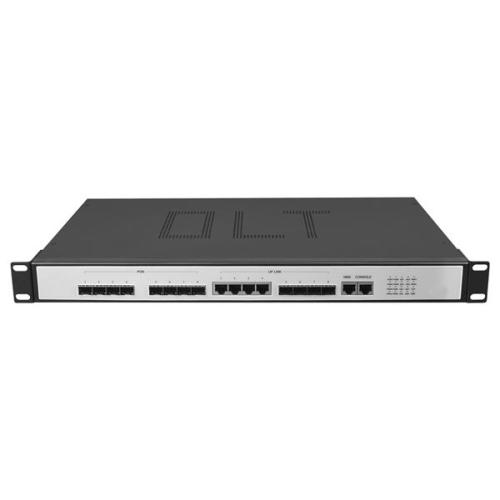

EPON OLT 8PON is the high-integration and medium-capacity cassette and it is designed for operators’ access and enterprise campus network. EPON OLT possesses excellent openness, large capacity, high reliability, complete software function, efficient bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.
GL-E8604T/08T-DH is a small scale office end OLT device of FTTX telecommunication level independently researched and developed by GL Company; it conforms to IEEE802.3-2005 standard and the technical requirement V2.1 specification for EPON device of China Telecom; it can provide user with access to comprehensive services such as broadband, voice, IPTV and CATV.
Product Features:
• Perfect Network Management Function
>Support GUI based graphical interface and WEB interface management;
>Support in-band management, out-of-band management;
>Support online upgrade of device software.
• Strong QOS Function
>Support flexible DBA, uplink and downlink traffic rate-limited;
>Support IP ToS, IEEE802.1p;
>Port based traffic control, traffic shaping.
• Rich OAM Function
>Support the function of automatic loop back test to single link;
>Strong VLAN function, including VLAN Stacking, Trunk, Translation, flexible QINQ;
>Support flexible controllable multicasting, support IGMP snooping.
Port Features:
>4 PON ports (1.25G);
>4 uplink electronicports (1G),4 uplinkopticalports;
>2 management ports (special software management).
Physical Features:
>Frame: 19 inches 1U height;
>Physical dimension: 440×260×43.6 (L×W×H, unit: mm);
>Power supply: AC 100-240V;
>Power consumption: 35W.
Applications:
