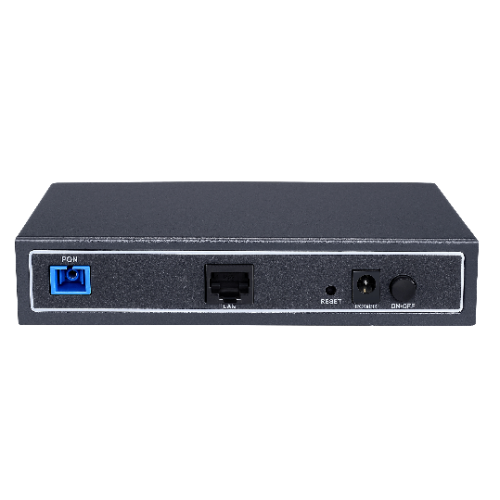

EPON ONU Modem 1 Port Iron Case

The using filed for Iron case ONU:

Plastic case ONU usually used to Fiber to the home,which is to say plastic case onu used to end users at home.It is small and easy taken easy install.But for Iron case onu usually used to Fiber to the Building,which is used to project such as Hotel and school.Because Iron case ONU is very stable not easily broken and it is waterproof.

EPON 1GE Onu Optical characteristics：

>Support wavelength division multiplexing technology single fiber bidirectional (single fiber three-way) transmission;>Interface Type: SC/PC ;>Maximum split ratio: 1:32;>Rate: Symmetry up and down 1.25Gbps;>Transmit wavelength:1310 nm;>Receive wavelength: 1490 nm;>Output optical power:-1~+4dBm;>Receive sensitivity:< -26dBm;>The longest distance between OLT and Industrial ONU supports 20 kilometers

Fttb Applications Onu Port characteristics：

1*PON port l 1*10/100/1000 M Ethernet port

Project Using Onu Physical properties：

Physical Size:110*70*30 Power supply:12VDC Power consumption:6W Temperature:Working temperature:-25～65℃;Storage temperature:-40～75℃;Relative humidity:10～90% (Non-condensing)
