4GE CATV WIFI GPON ONT

What is the technical principle of WiFi?

In the category of wireless LAN, wireless network refers to "wireless compatibility certification", which is essentially a commercial certification and also a wireless networking technology. In the past, computers were connected through network cables, while Wi-Fi was connected through radio waves. Internet; the common one is a wireless router, so the effective range of the radio wave coverage of this wireless router can be connected by Wi-Fi connection. If the wireless router is connected to an ADSL line or other Internet line, it is also called Hot spot.

One of the main ports of triple play devices is the Phone Port, also known as Telephone Port, FXS Port, VoIP/FXS Port, providing users VoIP Function.GPON CATV ONT, also known as RF Port ONU, is one of the most commonly seen GPON Device using PON Technology. Sometimes people also call GPON ONT as GPON ONU.

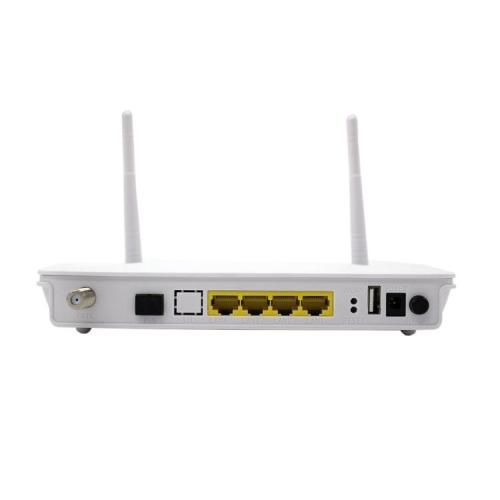

G8007U-RWF is the device terminal for ONT in the EPON system, cooperating with OLT. ONT can provide various broadband services to the connected users, such as Internet, VoIP, IPTV, Video Conference and other businesses. It provides a PON interface, four 10/100/1000m adaptive Ethernet ports, and a USB interface based on mature, stable, cost-effective EPON technology. Single fiber WDM technology (down 1490nm, up 1310nm) is adopted to connect only one fiber to OLT, and the maximum transmission distance is up to 20km. It supports the power down and report function and supports the local WEB management function.

Product Features:

• HGU ONU product configuration, support bridge and NAT mode
• BOB product process
• 802.11 b/g/n wireless access
• Wireless use of 2*3dBi external dual antenna
• USB interface supports configuration saving and recovery
• 12v / 1.5a external power supply
• One CATV interface

Product Key Features：

• Handling characteristics: 600MHz CPU processor, I-Cache: 64KB, D-Cache: 32KB；
• IEEE 802.3 EPON MAC standard.
• Supports a downtrend rate of 1.25Gbit/s and an uptrend rate of 1.25Gbit/s.
• Supports DS/US FEC.
• Supports the downstream encryption and decryption function.
• Supports bandwidth allocation.
• Supports synchronous Ethernet function.
• Supports RFC4837.
