Mini Size GPON 1PON OLT

Mini Size GPON 1PON OLT is very popular to the market recently.Customers all like small size low weight products which take low freight cost.Also mini size take small space when installing.This model GPON 1 Port OLT have 2*RJ45 Port,1*PON port,1*10G SFP port,1*console port.

It's Lay 2 management,with cheap and competitive price.Can fully compatible work with all models ONU,warmly welcomed by customers

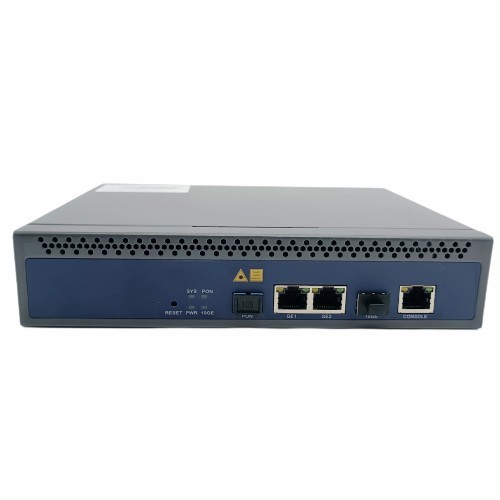

GL-G8601T-V is a box-type GPON OLT with one PON port. The price of this OLT is very attractive and the performance is very strong. The splitting ratio of its PON port is 1:128, and the farthest transmission distance is 20KM. Its uplink and downlink bandwidth is as high as: 1.25Gbps/2.5Gbps. This OLT can be widely used in FTTH, SOHO, small business office and other application scenarios.

Management Function:

Telnet,CLI,WEB;

Port Status monitoring and  configuration management

Online ONT configuration and  management

User management

Alarm management

Layer2 Switch:

1K Mac address

Support 4096 VLANs

Support port VLAN

Support VLAN tag/Un-tag, VLAN  transparent transmission

Support storm control based on port

Support port isolation

Support port rate limitation

Support 802.1D and 802.1W

Access control list

IEEE802.x flow control

Port stability statistic and  monitoring

Dimension (L*W*H):224mm*199mm*43.6mm

Weight:Net weight of single power: 1.07kg

Power Adapter:DC 12V/2.5A,AC 85~264V, 47/60Hz(Optional)

Working Temperature:0°C ~+55°C

Storage Temperature:-40~+85°C

Relative Humidity:10~85% (non-condensing)

Application:
