Gigabit Fiber Web Management Switch 16Port Ethernet

What is the difference between POE Switches and Ordinary Switches?

Different functions: POE switches can not only provide the transmission function of ordinary switches, but also provide power supply to the other end of the network cable. Different advantages: PoE switches have many advantages. In addition to the need for extra wires, it can also save costs, the system is more flexible, and the later upgrade and maintenance are simple.

Product Overview:

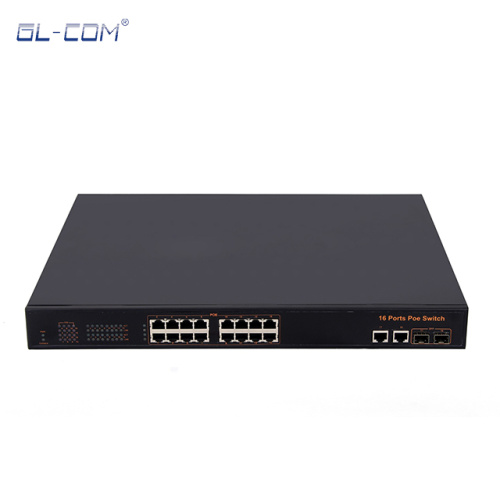

GL2016SP is managed PoE switch for security transmission and WIFI coverage,meet the WIFI AP,IP-camera,Wifi Port bridge,IP phones and other types of equipment PoE power supply needs.Products using a new generation of high-performance hardware and software platforms,providing flexible,cost-effective full Gigabit access and uplink ports,support for Layer 3 routing protocols,complete security mechanisms,improved ACL/QoS strategy and rich VLAN capabilities,it is easy to manage and maintain,meet the users' requirements for network equipment easy to manage,high security and low cost.It is suitable for network access,aggregation and core applications in campus, hotel and enterprise campus.

Features of GL-2016SP Equipment:

>1-8 port support 250Meters long-distance power supply (recommended cat5e or 6 network cable);

>Support a key VLAN, the port 1-16 isolated from each other, which can effectively inhibit network storms, improve network performance;

>Supports IEEE 802.3af / at standard, automatically detects and identifies devices that comply with the IEEE 802.3af / at standard and supply Poe Power to it;

>Support Auto MDI/MDIX；

>Small, exquisite design;

>Support port without link power saving function;

>All ports have wire-speed forwarding capability;

>Plug and play ,easy to use.

Specifications:

1. Port:16 10/100/1000Mbps RJ45  port,4 gigabit Sfp Fiber port,1 Console port;
2. PoE:16 10/100/1000Mbps RJ45 port support Poe Power,Max 400W,Single port max 30W;
3. LEDs:16 Link/Act LEDs,16 POE LEDs,1  Power LEDs;
4. Performance:Forwarding mode: store and forward,Switch Volume (Full-duplex):56Gbps,Packet forwarding rate41.664Mpps,8K MAC address table;
5. Input:100-240V/50-60Hz;
6. Size:440*320*44mm.

Product Details:
