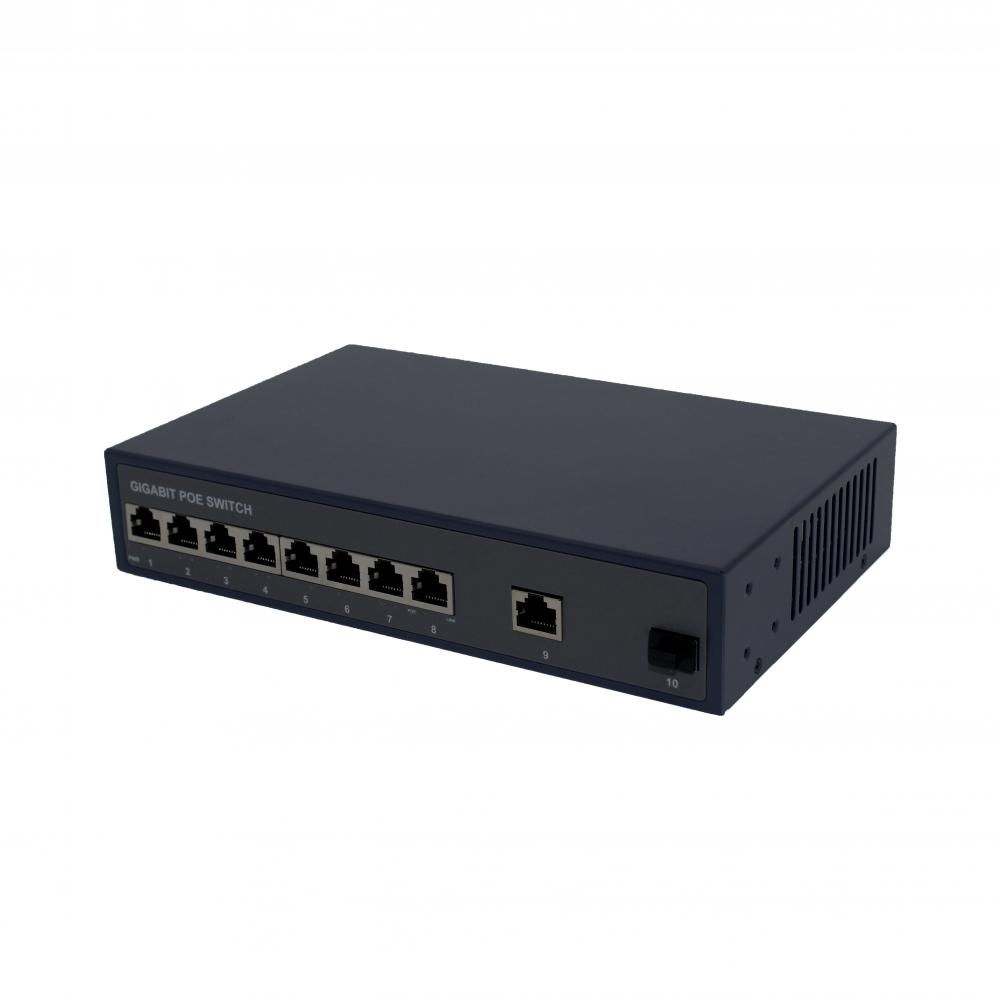

8Port 100M Unmanaged PoE Switch

PoE switch , has seen massive adoption these days by providing improved network flexibility and performance. A Gigabit PoE switch transmits both data and power supply simultaneously to network devices such as VoIP phones, network cameras without changing existing Ethernet cabling structure, which in turn, greatly reduce the cabling complexity as well as the cost of installation and maintenance.

Product Overview:

To fulfill the demand of High Power PoE for network applications with Gigabit transmission, GL-COM GL-808GP-1G1SFP PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the GL-808GP-1G1SFP features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 96/120-watt PoE budget on the whole system, It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / speed dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices by doubling PoE power, more than the current conventional 802.3af PoE.All RJ45 copper interfaces of the GL-808GP-1G1SFP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables.

Product Features:

Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T;

8-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device 1-Port 10/100/1000Mbps RJ45 interface for uplink;

1 1.25Gbps SFP interface for uplink;

Complies with IEEE 802.3af/802.3at Power over Ethernet End;

Up to 8 IEEE 802.3af devices powered;

Supports PoE Power up to 15.4 watts for each PoE port;

Up to 4 IEEE 802.3at devices powered;

Supports PoE Power up to 30 watts for each PoE port;

96/120-watt PoE budget;

Auto detects powered device (PD).

Port:1～8 Ports: 10/100/1000Mbps Ethernet Port, adaptive control Uplink 1 RJ45: 10/100/1000Mbps Uplink 1 SFP Port:1.25Gbps;

Transmission Distance:1~8 Ethernet Port：0~100m,Mandatory 10 Mbps reach up to 250m,1 SFP: According to different optical module;

PoE Power Supply Wattage:Each port≤30W,Whole device<65W;

Power Indicator Light:One power light （green）;

Optical Fiber Port Indicator:One fiber link indication light ( green), Green light keeps on when the fiber port is well connected;

PoE Indicator:1~4 PoE indicator light（yellow);
PoE Network Port LED:1~5 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data.
