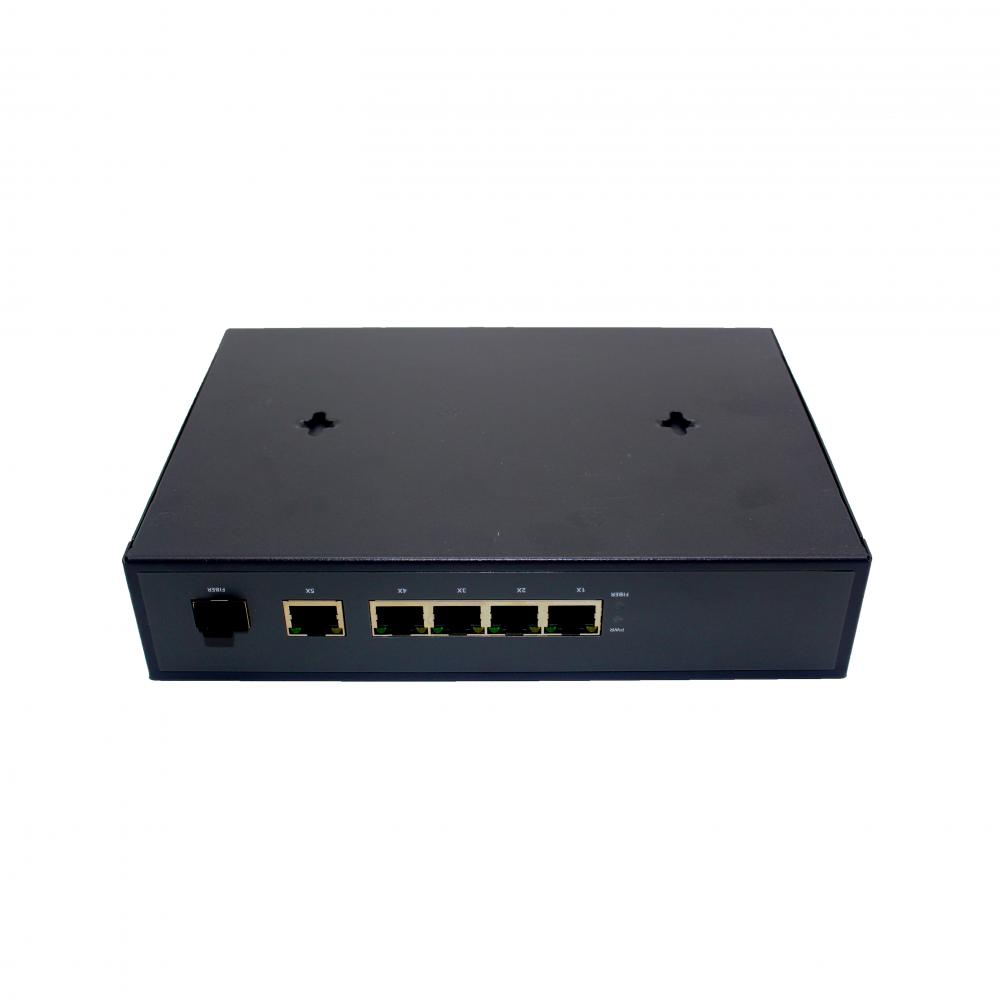

Ethernet Poe Switch 4 Ports 1G 1SFP

4GE 1G RJ45 uplink port And 1SFP optic port POE Switch,each port POE Power Supply Wattage ≤30W,total device POE Power Supply ＜65W.This kind of POE Switch can be used in security and protection monitoring project,most of our customer use POE Switch in Monitoring and realty project.With POE Power Supply,the device which connected with this switch no need to connect with electric,this is very useful and convenient.

Product overview:

Each 10/100/1000Mbps port of this switch features combine up to 65-watt PoE budget on the whole system,It is designed specifically to satisfy the growing demand of higher power consuming network PD such as PTZ/speed dome network cameras, multi-channel wireless.All RJ45 copper interfaces of the PSE-804GP-1G1SFP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6,5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.1extra 1.25Gbps SC interface can be used for uplink.

Features:

4-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device;1 RJ45 10/100/1000Mbps for uplink;1 1.25Gbps SFP interface for uplink;Supports PoE Power up to 30 watts for each PoE port;65-watt PoE budget;Auto detects powered device;Automatic address learning and address aging;Made of metal, desktop size and wall-mount design

Port:1～4 Ports:10/100/1000Mbps Ethernet Port, adaptive control Uplink 1 RJ45: 10/100/1000Mbps Uplink 1 SFP Port:1.25Gbps

Transmission Distance:1~4 Ethernet Port:0~100m,Mandatory 10 Mbps reach up to 250m,1 SFP:According to different optical module

PoE Power Supply Wattage:Each port≤30W,Whole device<65W

Power Indicator Light:One power light

Optical Fiber Port Indicator:One fiber link indication light,Green light keeps on when the fiber port is well connected

PoE Indicator:1~4 PoE indicator light
PoE Network Port LED:1~5 port Keeps on when normally connected, Blinking when transceiver data

Working Temperature:-10℃～55℃;Storage Temperature:-40℃-85℃;Humidity(non-congeal):0~95%;Size:202*140*45MM;Weight:1KG

Mean time between failures (MTBF):＞50000h

Products details:
