Ftth Optical Network Onu 4ge Wifi Pots

Is ONU necessary for router?

A router can help with the coverage distance of the WiFi, but if you don't have a cruel need of WiFi, an ONU may be enough. Therefore, you don't need to spend money to buy a router.But once you think wifi signal is not strong,you can use a router to strengthen ONU wifi function.

E8007u-r is the device terminal for ONT in the EPON system, cooperating with OLT. ONT can provide various broadband services to the connected users, such as Internet, VoIP, IPTV, Video Conference and other businesses.It provides a PON interface, four 10/100/1000m adaptive Ethernet ports, and a USB interface based on mature, stable, cost-effective EPON technology.Single fiber WDMtechnology (down 1490nm, up 1310nm) is adopted to connect only one fiber to OLT, and the maximum transmission distance is up to 20km. It supports the power down and report function and supports the local WEB management function.

Epon 4ge Wifi Onu Product interface：

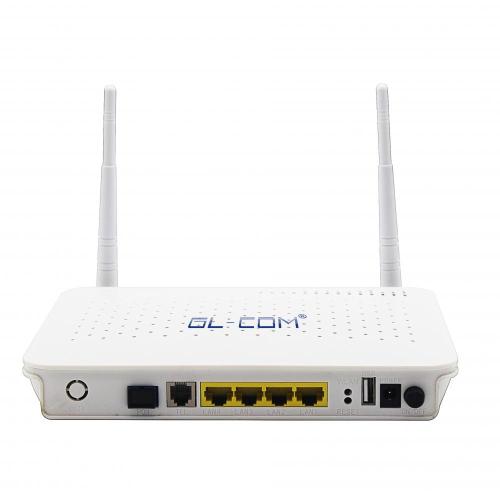

Interface: hardware interface, facing the interface direction from left to right, in order of interface: pon interface,VoIP port, net port 4-net port 1, wireless switch, reset key, USB interface, dc 12-volt interface, power switch.
Indicator light: LED definition from left to right: power supply, fiber G, optical signal, broadband, phone, port 1-4, USB.

1. HGU ONU product configuration, support bridge and NAT mode;
2. BOB product process;
3.802.11 b/g/n wireless access;
4.Wireless use of 2*3dBi external dual antenna;
5. USB interface supports configuration saving and recovery;
6.12v / 1.5a external power supply.

7.Provide a voip port for ordinary telephone

Epon Wifi Onu Details:
