EPON 4GE+WiFi ONU FTTH Solution

EPON WIFI ONU 4GE FTTH Solution

Q:What is FTTH Solution ?

A: FTTH ( Fiber to the Home ), or fiber to the home, means that the fiber enters each user's room, and the optical network terminal ( ont ) is installed on the user's desktop.

Remarkable technical features of ftth:1) provide higher bandwidth;2) improve the anti-interference of the access network and the comprehensive service provision capability

B: due to the small size of the client equipment , the indoor environment can easily meet the installation requirements of the ont, simplifying maintenace and installation;

C: Ftth adpots a passive network, which can be completely passive from the central office to the user.5) Each user can allocate up to 100Mbit/s or even higher exclusive bandwidth, and can provide data, voice and video service.

E8007u-R is the device terminal for ONT in the EPON ONU system, cooperating with EPON OLT. ONU can provide various broadband services to the connected users, such as Internet, VoIP, IPTV, Video Conference and other businesses.It provides a PON interface, four 10/100/1000m adaptive Ethernet ports, and a USB interface based on mature, stable, cost-effective EPON technology.Single fiber WDM technology (down 1490nm, up 1310nm) is adopted to connect only one fiber to OLT, and the maximum transmission distance is up to 20km. It supports the power down and report function and supports the local WEB management function.

Product Interface:

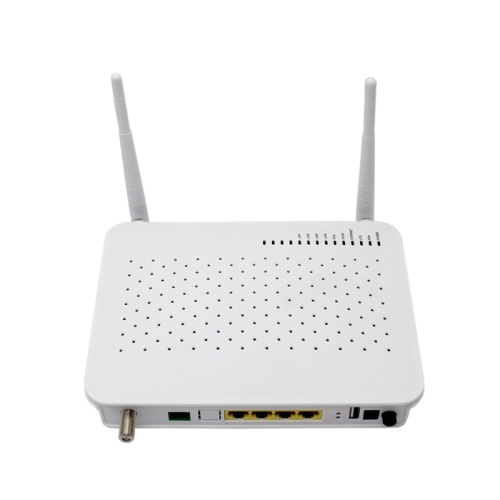

• Interface: hardware interface, facing the interface direction from left to right, in order of interface: CATV interface, pon interface, net port 4-net port 1, wireless switch, reset key, USB interface, dc 12-volt interface, power switch.

Indicator light: LED definition from left to right: power supply, fiber G, optical signal, broadband, phone, port 1-4, USB.

• HGU ONU product configuration, support bridge and NAT mode; 2. BOB product process; 3.802.11 b/g/n wireless access; 4.Wireless use of 2*3dBi external dual antenna; 5. USB interface supports configuration saving and recovery; 6.12v / 1.5a external power supply. 7.one CATV interface

Product key features：

• Handling characteristics：600MHz CPU processor,I-Cache: 64KB, D-Cache: 32KB；
