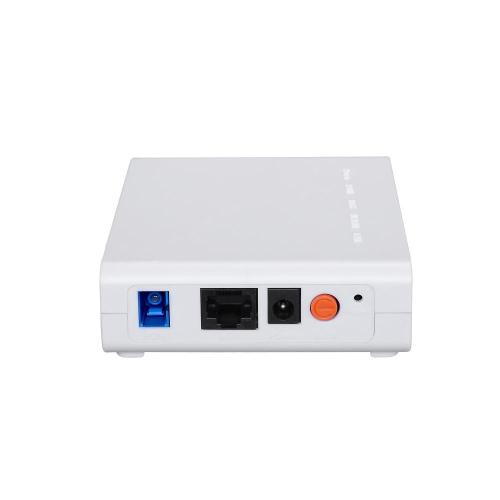

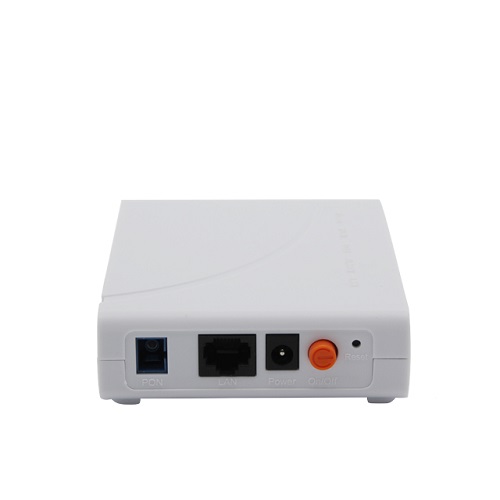

Single Port Mini EPON 1GE ONU For FTTH

$7.50

500-999 Piece/Pieces
$7.20

1000-1999 Piece/Pieces
$6.80

≥2000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHEKOU, YANTIAN, GUANGZHOU

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50000/Month
Supply Ability:	50000/Month
Payment Type:	T/T
Incoterm:	EXW,FOB
Certificate:	CE,ROHS,3C
HS Code:	8517622990
Transportation:	Ocean,Land,Air,Express
Port:	SHEKOU,YANTIAN,GUANGZHOU

Product Description

OLT Network Management System

1. Purpose of creation: Developed for the standardized, intelligent and informatized management of the optical network OLT system, effectively

2. Reducing the workload of management personnel, and improving work efficiency and service level.

Main functions: The management system integrates configuration management, performance management, fault management and other functions.

EPON 1GE ONU Product Features:

> Conform to IEEE802.3ah standard;

> Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services;

> Support standard 802.1Q Vlan function, support VLAN conversion;

> Support Dynamic Bandwidth Allocation (DBA) function;

> Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc;

> Single ONU supports up to 1 LLID;

> Support lightning protection for power supply and lightning protection for service port.

ZTE Chipset

Epon Device Technical Parameter:

1. User interface:1 10/100/1000M RJ45 port;

2. PON Transmission speed: upstream 1.25Gbps, downstream 1.25Gbps;Network coverage radius: 20KM;Optical receive sensitivity; -25dBm;Luminous power:>0dBm;

3. VLAN:Port-based VLAN;IEEE 802.1Q VLAN;

4. Safety:IEEE 802.1x, access control based upon Port; support local and remote RADIUS.CHAP, EAP certification;

5. Router:Support Router;

6. Management:Web, TELNET;

7. Environment:Operating temperature: 0℃～50℃;Storage temperature: -40℃～80℃;

8. Power supply:110～240VAC 12V/0.5A DC;Power interface size: 2.5mm;

9. Power Consumption:2.5W.

With Router Bridge PPPoE
