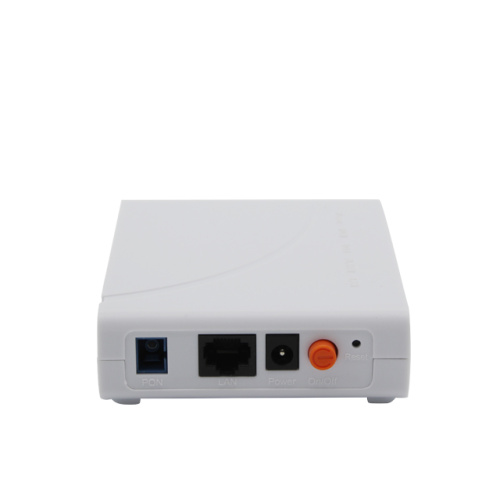

BOSA Type White Color 1GE EPON ONU

Type of ONU

ONU is divided into MDU (Multi-Dwelling Unit, multi-dwelling unit) and MTU (Multi-Tenant Unit, multi-tenant unit).

MDU is mainly used for the access of multiple residential users under the FTTB application type, and generally has at least 4 user-side interfaces, usually with 8, 16, or 24 FE or FE+POTS (fixed telephone) interfaces.

MTU is mainly used for the access of multiple enterprise users or multiple terminals in the same enterprise in the FTTB scenario. In addition to Ethernet interface and fixed telephone interface, it may also have E1 interface; the appearance and function of MTU are usually not the same as MDU The difference, but the electrical protection performance is better, and the stability is higher. With the popularity of FTTO, the application scenarios of MTU are getting smaller and smaller.

EPON 1GE ONU Product features:

> Conform to IEEE802.3ah standard
> Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
> Support frame filtering and suppression
> Support standard 802.1Q Vlan function, support VLAN conversion
> Support 4094 VLANs (802.1Q)
> Support Dynamic Bandwidth Allocation (DBA) function
> Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc
> Single ONU supports up to 1 LLID.Support IGMP Snooping.Support router
> Support Ethernet port ratelimit loop detection.Support power failure alarm
> Support lightning protection for power supply and lightning protection for service port

Epon Device Technical Parameter:

Model:E8010U-FZ
User interface:1 10/100/1000M RJ45 port.
PON Transmission speed: upstream 1.25Gbps, downstream 1.25Gbps;Network coverage radius: 20KM;Optical receive sensitivity: -25dBm;Luminous power:>0dBm;Security: ONU authentication mechanism;
VLAN:Port-based VLAN;IEEE 802.1Q VLAN
QOS:Backpressure flow control (half-duplex);IEEE 802.3x flow control (full-duplex);Prevent Head Of Line;IEEE 802.1p, CoS;WR, SP and FIFO queue scheduling algorithm;Port rate limit
Safety:IEEE 802.1x, access control based upon Port; support local and remote RADIUS.CHAP, EAP certification;Storm control, port protection,
Router:Support Router
Management:Web, TELNET
Size:117mm(L) ×88mm(W) ×32mm(H)
Environment:Operating temperature: 0℃～50℃;

Operating humidity: 10%～85% non-condensing;

Storage temperature: -40℃～80℃;

Storage humidity: 5%～95% non-condensing

Power supply:110～240VAC 12V/0.5A DC;Power interface size: 2.5mm
Power Consumption:2.5W

FTTH ONU Package details:
