100G DWDM 3 Ports Optical Network Device

100G DWDM 3 Ports Optical Network Device

Get Latest Price

Transportation:: Ocean, Air

Port:: SHENZHEN, YANTIAN, SHEKOU

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000/Month
Supply Ability:	100000/Month
Payment Type:	T/T
Incoterm:	FOB,EXW
Certificate:	ROHS, GR 1209, GR 1221
HS Code:	85176950
Transportation:	Ocean,Air
Port:	SHENZHEN,YANTIAN,SHEKOU

Product Description

100G DWDM 3Ports DWDM Devices

What is the origin of DWDM?

The relationship between the communication transmission network and the business has become increasingly complex under the situation of a substantial increase in business volume. The original TDM (optical fiber single-wave transmission and time division multiplexing) cannot meet the needs of new technologies. The highest rate of optical fiber single-wave transmission for commercial applications is 40Gbits/s, and it is expensive. TDM technology is difficult to adapt to complex networks and business relationships. The optical fiber multiwave transmission technology that uses pure optical devices for long-wave dispatch has broken the limit of the processing speed of electronic devices. Based on the SDH technology, the optical fiber transmission capacity has been greatly improved. The current commercial application rate of Dense Lightwave Multiplexing (DWDM) technology (DWDM) technology (also known as OTN technology) has reached 3.2 Tbits/s, which means that the communication network can be smoothly upgraded and evolved.

Dense WDM, also named dense WDM splitter, as well as coarse WDM splitter, is one of the commonly seen WDM device. DWDM often applied with network device such as wireless device, olt device, etc.

Multiplexer For WDM Network Systems Y

Product Information:

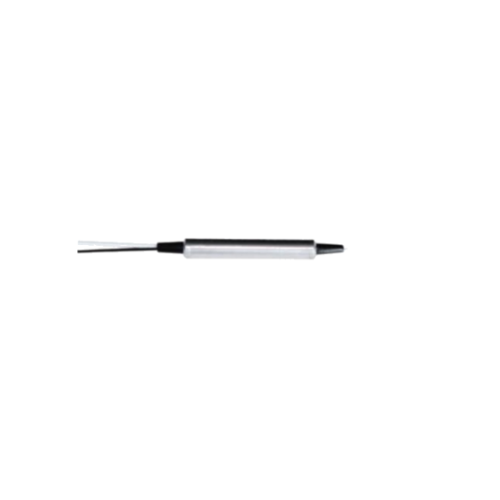

1x2 100G DWDM device is based on the thin film filter technology, which can let two or more different optical wavelength transmit respective signal in one optical fiber, or separate the multiplex signals, the central wavelength space is 100GHz.

3 Ports 200g Dwdm 1

Product Features:

High Channel Isolation, low Insertion Loss
Epoxy-free on Optical Path
High Stability and reliability
Material meet RoHS
Meet GR 1209,GR 1221 requirement

Multiplexer For Wdm Network Systems Y

Product Specification:

Working Wavelength Range (nm): 1500~1700
Channel Wavelength (nm): ITU Standard
Passband Width (nm): ±0.11
Channel Spacing (nm): 100G
Pass Channel Insertion Loss (dB): Maximum 0.8
Reflection Channel Loss (dB): Maximum 0.4
Ripple (dB): Maximum 0.3
Adjacent Pass Channel Isolation (dB): Minimum 30
Non-adjacent Pass Channel Isolation (dB): Minimum 45
Isolation of Pass Channel @ Reflection Port (dB): Minimum 15
Directivity (dB): Minimum 45
Return Loss (dB): Minimum 45
Polarization Dependent Loss (dB): Maximum 0.1
Polarization Mode Dispersion (ps): Maximum 0.1
Maximum Optical Power (mW): 300
Operating Temperature Range (℃): -5~+70
Storage Temperature Range (℃): -40~85
Optical fiber type: Corning SMF 28e+ or equal (customized)
Optical fiber length (m): ≥1.0 (customized)
Package dimension (mm): All glass for bare fiber type Ø4.0x26 / Steel tube for loose tube type Ø5.5x39
