3 Ports 200G DWDM Network Device

Get Latest Price

Transportation:: Ocean, Air

Port:: SHENZHEN, YANTIAN, SHEKOU

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000/Month
Supply Ability:	100000/Month
Payment Type:	T/T
Incoterm:	FOB,EXW
Certificate:	ROHS, GR 1209, GR 1221
HS Code:	85176950
Transportation:	Ocean,Air
Port:	SHENZHEN,YANTIAN,SHEKOU

Product Description

200G DWDM 3Ports DWDM Devices

What is a brief introduction of DWDM?

DWDM can combine and transmit different wavelengths at the same time in the same optical fiber. In order to be effective, one fiber is converted to multiple virtual fibers. So, if you plan to multiplex 8 optical fiber carriers (OC), that is, transmit 8 signals in one optical fiber, the transmission capacity will increase from 2.5Gb/s to 20Gb/s. Data was collected in March 2013. Due to the use of DWDM technology, a single optical fiber can transmit more than 150 light waves of different wavelengths at the same time, and the maximum speed of each light wave can reach a transmission rate of 10Gb/s. As manufacturers add more channels to each fiber, the transmission speed of terabits per second is just around the corner.

Dense WDM, also named dense WDM splitter, as well as coarse WDM splitter, is one of the commonly seen WDM device. DWDM often applied with network device such as wireless device, olt device, etc.

Multiplexer For WDM Network Systems Y

Product Information:

1x2 200G DWDM device is based on the thin film filter technology, which can let two or more different optical wavelength transmit respective signal in one optical fiber, or separate the multiplex signals, the central wavelength space is 200GHz.

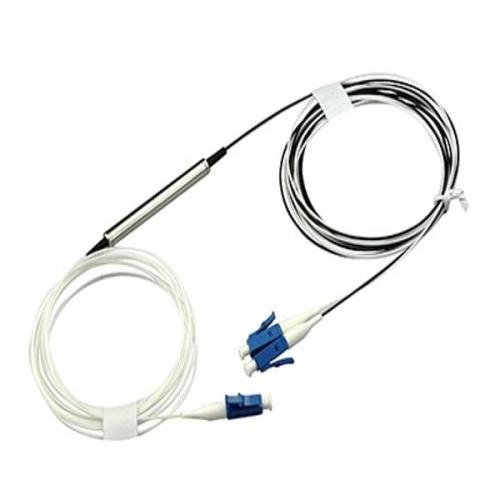

3 Ports 200G DWDM 1

Product Features:

High Channel Isolation, low Insertion Loss
Epoxy-free on Optical Path
High Stability and reliability
Material meet RoHS
Meet GR 1209,GR 1221 requirement

Multiplexer For Wdm Network Systems Y

Product Specification:

Working Wavelength Range (nm): 1500~1700
Channel Wavelength (nm): ITU Standard
Passband Width (nm): ±0.25
Channel Spacing (nm): 200G
Pass Channel Insertion Loss (dB): Maximum 0.8
Reflection Channel Loss (dB): Maximum 0.4
Ripple (dB): Maximum 0.3
Adjacent Pass Channel Isolation (dB): Minimum 30
Non-adjacent Pass Channel Isolation (dB): Minimum 45
Isolation of Pass Channel @ Reflection Port(dB): Minimum 15
Directivity (dB): Minimum 45
Return Loss (dB: Minimum) 45
Polarization Dependent Loss (dB): Maximum 0.1
Polarization Mode Dispersion (ps): Maximum 0.1
Maximum Optical Power (mW): 300
Operating Temperature Range (℃): -5~+70
Storage Temperature Range (℃): -40~85
Optical fiber type: Corning SMF 28e+ or equal (customized)
Optical fiber length (m): ≥1.0 (customized)
Package dimension (mm): All glass for bare fiber type Ø4.0x26 / Steel tube for loose tube type Ø5.5x39
