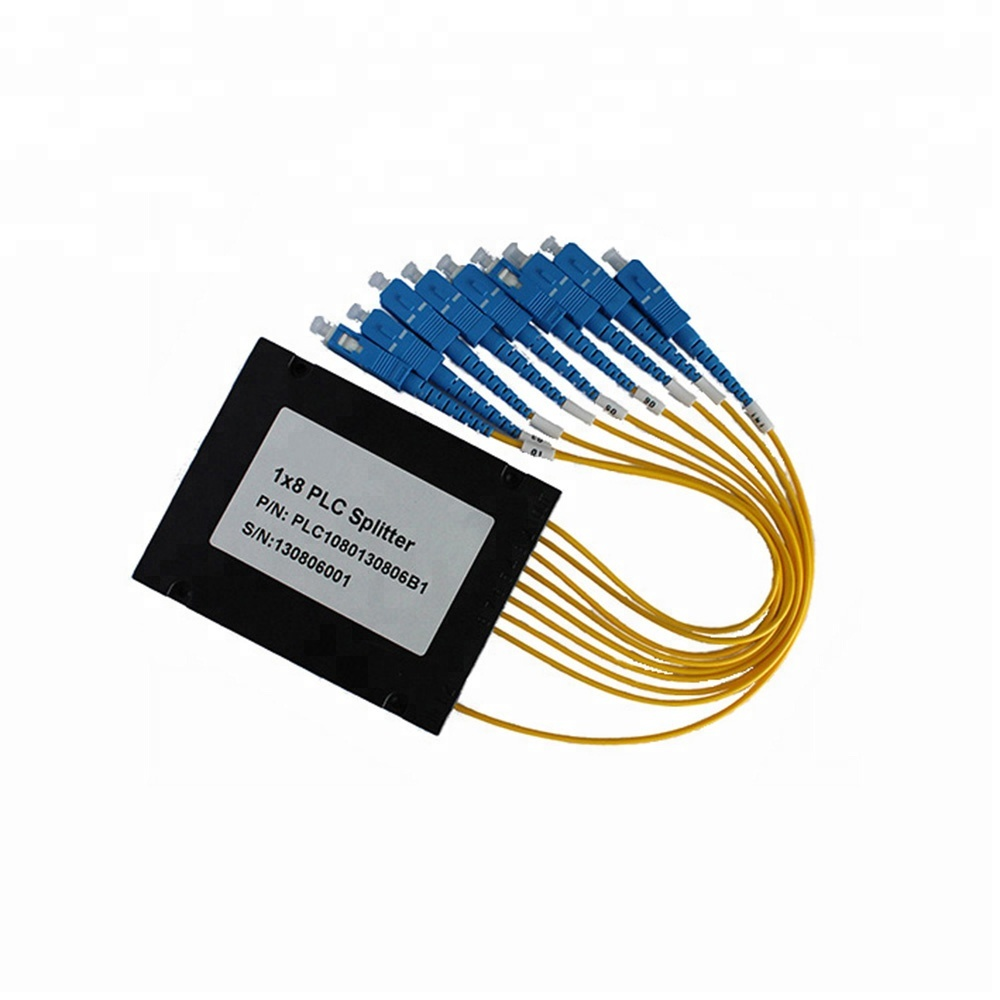

Fiber Optical ABS Box Type PLC Splitter 1x8

FTTH Fiber Optical Equipment ABS Box Type PLC Splitter 1x8

Plc Splitter is one of the most important passive components in optical fiber links.It is an optical fiber tandem device with multiple input ends and multiple output ends.It is especially suitable for connecting the central office and the central office in passive optical networks(EPON,GPON,BPON,etc.)Terminal equipment and realize the branch of the optical signal.

ABS BOX PLC Product description:

The PLC splitter is a kind of integrated waveguide optical power distribution device based on quartz substrate.It has the characteristics of small volume,wide operating wavelength range,high reliability,good uniformity of spectrophotometer and so on.For Passive Optical Network(EPON,BPON,GPON,etc)to connect the central office and terminal equipment and to achieve optical signal shunt.The 1xN and 2xN splitters evenly divided the optical signal into multiple outlets evenly from a single or dual inlet,or vice versa,to import multiple optical signals into a single or two root fiber.

Network Device Features.

1)Good uniformity and low insertion loss  2)Low polarization dependent loss 3)Excellent environmental stability
4)Excellent mechanical 5)Compact design,suitable for installation in optical equipment
6)Wide operating temperature:-40~85 ℃ 7)High reliability and stability

Applificaiton.

1) FTTX Systems 2)PON Networks 3)CATV Links 4)Optical Signal Distribution 5)Local Areal Networks (LAN) 6)Optic Fiber communication Systems

Specification:Operating Wavelength (nm):1260~1650;Insertion Loss (dB) Max. (P/A):3.8/4.1;Uniformity (dB) Max:<0.6;PDL(dB)Max:<0.2;Rectivity (dB) Min *:55;Return Loss (dB) Min *:55(50) Operating Temperature (°C):-40~ +85
