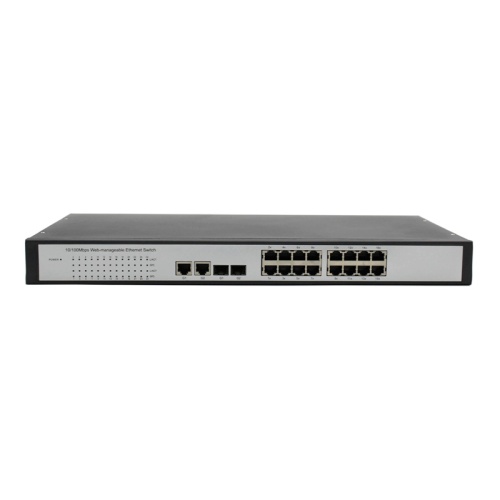

16 port Ethernet Switch

Gigabit switches are known to have many different numbers of ports, ranging from 4 to over 24. Here we are talking about a 16-port switch, which allows you to connect a wide variety of devices that can reduce complexity to a greater level. The 16-port Gigabit switch is affordable and provides an ideal networking solution for workgroup users and broadband access in smart communities.

Product Overview:

Web Management Switch provides 24 10/100M ports, Web Management, support port speed, operating mode, Port VLAN, the port bandwidth control, priority, port security and other intelligent configuration.2026SFGW overall superior performance, easy to use, affordable for the working group of users and intelligent residential broadband access network provides an ideal solution.

Web Management Switch Key Features:
>Comply with IEEE 802.3, IEEE 802.3u standards;
>Flow control: full-duplex using IEEE 802.3x standard, half-duplex technology with Backpressure;
>24 10/100M adaptive RJ45 ports, supports port auto-flip (Auto MDI / MDIX);
>Support Port VLAN / MTU VLAN/IEEE802.1Q VLAN function;
>Provides port bandwidth control functions, the minimum size for the 128kbps;
>Support for IEEE802.1p priority protocol mode, the secondary static port priority mode and ToS priority mode;
>Support broadcast storm control;
>Provide a fixed IP address settings;
>Provide Web Management;
>Support for switching system software upgrades, save and restore configuration files.

Product Specifications:

Type: 2026SFGW;

Standard：IEEE802.3,IEEE802.3u,IEEE802.3X, IEEE802.3Z,IEEE802.3ab;

Backplane bandwidth: 8.8G;

MAC Address table: 4K;

Port type：24 FE+2 GE COMBO port;

Power：Internal power ，100-240VAC;

Power consumption：12W;

Physical size：440*250*47mm;

Weight：2.5KG;

Suitable temperature：0℃-50℃（Working environment），-20℃-70℃（Storage temperature);

Suitable humidity：5%-90% No condensation (work environment).

Products Details:
