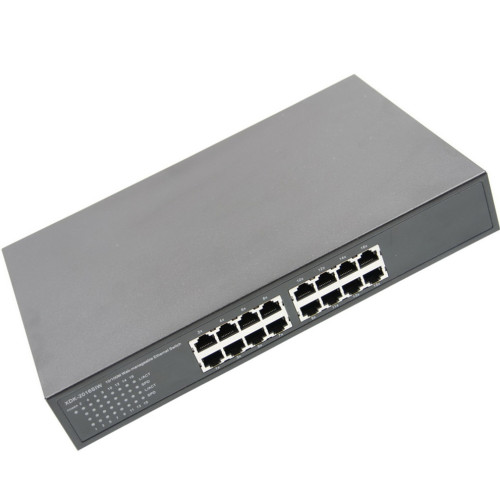

Cheap Price Ethernet 16FE Switch

What is the main function of the 16-port switch? GL-2016SIV provides 16 Fast Ethernet ports, each port is used to connect an independent network segment, and the switch can be connected to the same type of network, or between different types of Ethernet and Fast Ethernet. interconnection. A high-speed connection port capable of supporting Fast Ethernet or FDDI. The Ethernet switch knows the MAC address of the device connected to each port, and can map the address with the corresponding port and store it in the MAC address table cached by the switch.

Product features:

Port isolation Ethernet Switch provides  16 100m Switch auto-sensing ports, all ports support MDI / MDIX auto-flip function, neither can be used as ordinary port, also used as Uplink port. It provides a simple, economical, high performance, seamless, standard networks moved to 100M solution in improving the performance of the Working Group provides a great flexibility, with the use of simple, flexible, easy installation, superior performance, cost-effective the characteristics of high speed is your ideal choice for improving service.

Key Features:

>Comply with IEEE 802.3, IEEE 802.3u standards

>Flow control: full-duplex using IEEE 802.3x standard, half-duplex technology with Backpressure

>16 10/100M adaptive RJ45 ports, supports port auto-flip (Auto MDI / MDIX)

>Support Port isolation

Product specifications:

Hardware specifications

Standard：IEEE802.3、IEEE802.3u、IEEE802.3X

Backplane bandwidth:3.2G

MAC Address table:8K

Port type：16 FE port；1 fiber port

Power：Internal power ，100-240VAC

Power consumption：6W

Physical size：283*187*45mm

Products details:
