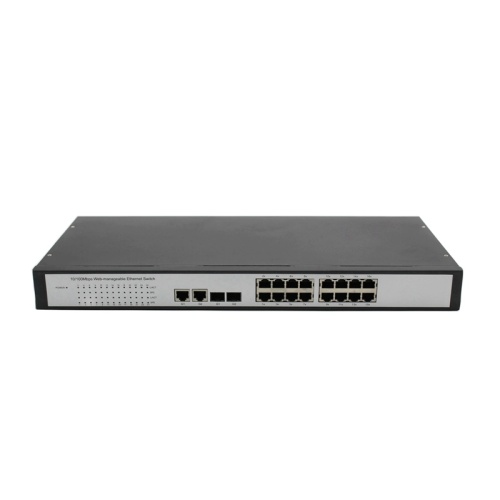

Managed 16FE Switch with 2GE COMBO Port

The main functions for Switch:

The main functions of the switch include physical addressing, network topology, error checking,frame sequence and flow control.At present, the switch also has some new functions,such as support for VLAN,support for link aggregation,and some even have the function of firewall.

Product overview:

Web Management Switch provides 24 10/100M ports,Web Management,support port speed,operating mode,Port VLAN,the port bandwidth control,priority,port security and other intelligent configuration.It's overall superior performance,easy to use,affordable for the working group of users and intelligent residential broadband access network provides an ideal solution.

Web Management Switch Key Features:
>24 10/100M adaptive RJ45 ports,supports port auto-flip (Auto MDI / MDIX)
>Support Port VLAN/MTU VLAN/IEEE802.1Q VLAN function
>Provides port bandwidth control functions,the minimum size for the 128kbps
>Support broadcast storm control
>Provide a fixed IP address settings
>Provide Web Management
>Support for switching system software upgrades,save and restore configuration files

Product specifications:

Hardware specifications

Type:2026SFGW

Backplane bandwidth:8.8G

MAC Address table:4K

Port type：24 FE+2 GE COMBO port

Power：Internal power ，100-240VAC

Power consumption：12W

Physical size：440*250*47mm

Weight：2.5KG

Suitable temperature：0℃-50℃（Working environment），-20℃-70℃（Storage temperature）

Suitable humidity：5%-90% No condensation (work environment)

Products details:
