48v Solar Energy Storage Battery For Household Use

The basic requirements of lithium ion batteries electrolytes

 The electrolytes used in lithium-ion battery should meet the following basic requirements, which are the factors that must be considered to measure its performance , and are also the important preconditions to achieve high performance, low internal resistance, low price, long life and safety of lithium Iron Phosphate battery.

 1. The lifepo4 battery need to be high ionic conductivity in a wide temperature range, large number of lithium ion migration, in order to reduce the concentration polarization of the rechargeable Li ion battery in the charging and discharging process.

2. Good thermal stability to ensure that the lifepo4 battery operates in a proper temperature range.

3. Wide electrochemical window, preferably with an electrochemical stability window of 05V to ensure that no significant side reaction occurs at the electrolyte poles and meet the uniformity of electrode reaction in the electrochemical process.

4, instead of diaphragm use, but also have good mechanical properties and machinable performance.

5. The lithium ion battery need to be low price and cost.

6. The lithium battery need to be good safety, high flash point or no burning

7, The rechargeable lithium battery need to be no toxic pollution, no harm to the environment



Product information :

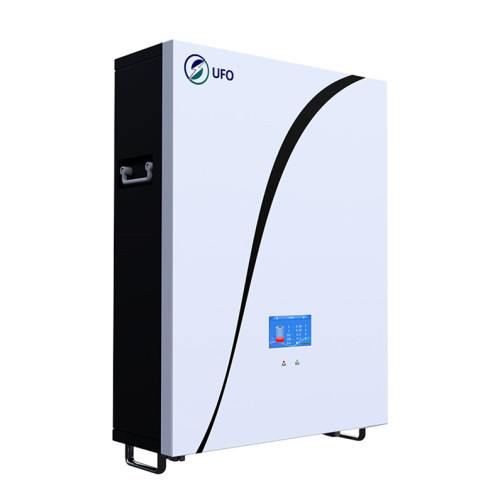

1.The Lifepo4 Battery Pack wallmount battery Solar Battery Systems has passed CE, UN,MSDS,IEC,UL and other certifications.

2. The regular model for Powerwall are 2.4Kwh,5kwh, 7kwh and 10kwh. Other model can be got for choices.

3. The 48V 200Ah Powerwall powerwall batteries support Maximum Continuous discharge Current 100A, with LCD which shows the battery voltage, SOC status.

4. With RS232/RS485/CAN and can communication on PC

5. Suitable with lots of off-grid and hybrid inverters and match well.　

6. Compatible with different brand inverter communication with APP monitoring function.

7. Support in parallel for more than 10pcs for more energy storage,we suggest to be in parallel 4-6　ets for best performances

8. More than 6000 cycles @80% depth of discharge. High Efficiency Battery

10. Off-grid inverter and hybrid inverter are available based on your actual requirement .

Advantage :

1. Unique design, highly performanace
2. Ten years design life time
3. Any spectrum can be OEM/ODM, at any stage of growth.
4. Top quality material, Easy installation and maintenance.

5, Y15+ Professional engineer team support.

Powerwall battery Parameters:

Part No.:	U-P48100-9
Power(w):	4.8kwh
Norminal Capacity:	100Ah
Charge voltage :	53.5~55.5v
Max charge and discharge current:	100A
Product size:(mm)	L370*W450*H200mm
Communication port :	CAN/RS485/RS232/Dry contact
Working temperature :	-20 ~ 60℃
Charge mode :	CC-CV

About shipment and payment :
How to order: Provide your qty ,we will check the shipping fee and give you payment information.
Which payment: T/T, L/C, Paypal, 30% deposits, 70% balance to be paid before shipment
Lead time: 10-15days for samples after deposit receive , mass production depend on actual qty
Shipment Method:
1. UPS/DHL/FEDEX/TNT /EMS for samples.
2. By Air or by Sea for batch goods, for FCL and LCL.
3. Customers specifying freight forwarders or negotiable shipping methods!

Powerwall battery Product Details:

BMS Functions:
--Overcharge detection function                                   --Over discharge detection function
--Over current detection function                                 --Short detection function
--Temperature detection function                                 --Balance function
--Communicate function RS485,RS232,CANBUS         --Alarm function

Touch LCD Screen :

Terminal definition

UFO Lithium ion batteries could support 15pcs in parallel.

Installation of lithium battery in parallel :

Connection mode of parallel communication :

Packaging

Company Profile

Not only are we engaged in the research, development, sale and service of Lithium-ion Battery, but we are proud to say our factory is ISO9001 certified.
Being a UFO POWER customer, you can be confident when purchasing from us because what behind you are our professional team, strict quality control and thoughtful customer service. Our team has been in this industry for over 10 years of lithium-ion battery experience. Our certifications like MSDS, CE is our commitment to quality and safety for our lithium batteries,48v Battery Voltage Chart, to ensure we comply with the industry’s quality and safety standards. We are always available to discuss your requirements of batteries within 24 hours. Our know-how and expertise, incorporated with our unparalleled customer advice and after sales support will ensure your enjoyable customer journey.

Our Services

● Pre-sales Service

1. Inquiry and consulting

2. Sample support

3. View our factory

4. More than 95% of the timely response rate, timely response to customer questions

● After-sales Service

1. Engineer's technical support

2. Use online contact methods such as skype whatsapp to privide online services to customers.

Our Advantages

       ODM/OEM Service                                      10+ Years Reputed Manufacturer                   10+ Years Experienced R&D Team Support

FAQ
Q1: Are you a manufacturing factory?
A1: Yes, We are a lithium battery manufacturer from China since 2010. You are welcome to visit our factory and production process. If the quantity is suitable, we accept OEM/ODM.
Q2: What’s your product range?
A2: We focus on Lithium-ion battery, Lithium iron phosphate (LiFePO4) battery for residential and commercial energy storage system, telecom tower, UPS, AGVs, golf carts, boat, RVs, camping, electric vehicles, etc. 48v 200ah Powerwall for option.
Q3: What is the production time for your lithium battery?
A3: The sample delivery time is about 5-10 days. The bulk order delivery time is about 25-35days based on quantity.
Q4: Can I buy one or two units as a sample first?
A4: Yes. Samples are welcome for the LiFePO4 battery. Please contact our sales manager to place the order.
Q5: Are there any discounts available?
A5: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.
Q6: How do you guarantee the quality?
A6: We encourage buying a sample initially prior to bulk purchases.
   We always perform a thorough final inspection before shipment.
Q7: How are the products packaged for shipment?
A7: Package Information: carton or wooden packaging.

If you need a battery solution for your solar project, please contact us
