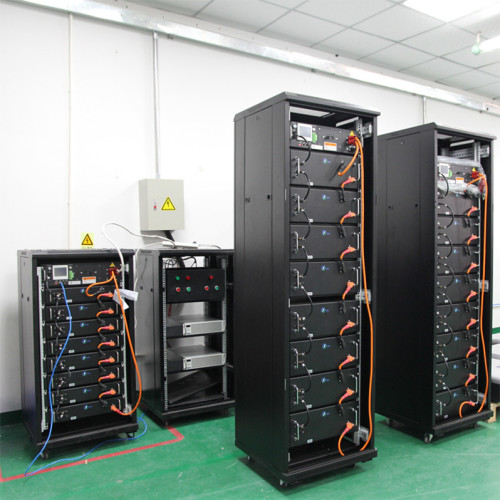

High voltage 384V lifepo4 battery for solar

At the beginning of this year, benefiting from the hot new energy track, the lithium-ion battery sector has ushered in an outbreak period.

It is particularly worth mentioning that the concept index of lithium iron phosphate batteries has continued to rise. The hot battery concept is accompanied by a high boom in the lithium lifepo4 battery industry. Specifically, lifepo4 battery has the advantages of high safety, low cost, and long cycle life.  At present, many enterprises in the industry are studying to improve their energy density by improving the technical route or process flow.

Specification

Type	Module
Model	LFP384V50AH	LFP384V100AH	LFP384V150AH	FP384V200AH
Battery Capacity [Ah]	50Ah	100Ah	150Ah	200Ah
Nominal Battery Energy [kwh]	19.2	38.4	57.6	76.8
Max Discharge Current [A]	50	100	100	100
Net Weight(kgs)	320kgs	438kgs	749kgs	800kgs
Dimension  [H*W*D, mm]	600*600*1600	600*600*1600	600*600*1400*2pcs	650*600*1600*2pcs
Voltage Window (V)	438V	438V	438V	438V
Output Voltage Range (V)	336V~438V	336V~438V	336V~438V	336V~438V
Max. Charge Current(A)	50A	100A	100A	100A
Charge Mode	CC-CV	CC-CV	CC-CV	CC-CV
Scalability	10 PCS UP to 192kwh / 384 kwh / 576kwh / 768kwh
Communication	CAN / RS485 / RS232 /DRY CONTACT
Charge Temperature	0~5 5℃
Certification Standard	IEC62619 /TUV / UN38.3 / UL /CE / ISO90001

1. Quick details of High Voltage LiFePO4 384V 100Ah Battery

* High voltage power up to 384V

* 120S2P combination way to achieve 38kw power

* Extremely safe for residential energy storage

* Use high power density lithium iron phosphate battery cell* Long cycle life up to 6000 times

* Environment friendly

2. BMS functions of LiFePO4 battery 384v 100Ah

Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit, temperature detecting protection and

auotmatically voltage balance function .

Build with high end electronic components (High End IC and MOSFET ) , Simple structure design will let it have more stable quality working performance , Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ), full set of protection measures let it works well without any influence from external unexpected accidents.

Manufacturing Technique
