Product description

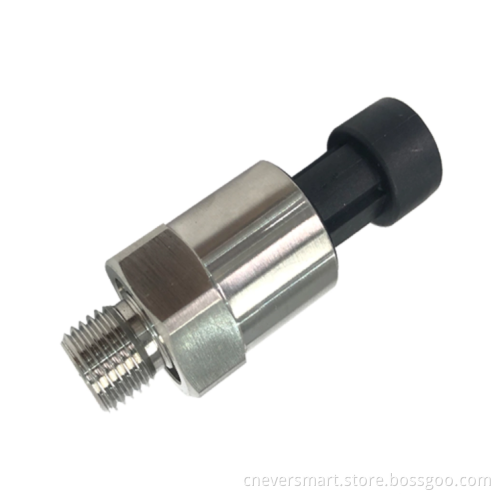

The capacitive pressure sensor consists of two movable plates (an elastic metal diaphragm), an output terminal, and a housing placed in a cavity. Form two capacitors in series between the movable plate and two fixed plates. When intake pressure is applied to the elastic diaphragm, the elastic diaphragm shifts and the distance from one fixed plate must be reduced and the distance from the other fixed plate increased (which can be proved with paper). The distance between two metal plates is one of the important factors affecting the capacitance, the distance increases, the capacitance decreases, the distance decreases, the capacitance increases. This structure is called differential structure because it is measured equally and causes the opposite change of the parameters of the two sensors. If the elastic diaphragm is placed between the side pressure and the atmosphere (the upper chamber of the elastic diaphragm passes through the atmosphere), the surface pressure is measured; If the elastic diaphragm is placed between the side pressure and the vacuum through which the upper chamber of the elastic diaphragm passes, the absolute pressure is measured. Specializing in the manufacture of intake manifold absolute pressure sensor, high precision pressure sensor, water pressure sensor, refrigerant pressure transmitter, air conditioning pressure transmitter, etc.
