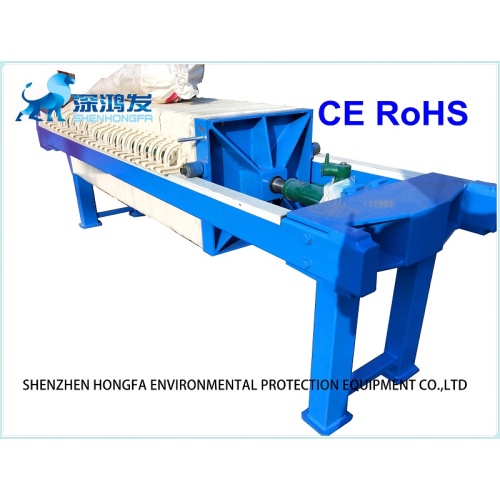

Plate And Frame Filter Press For Solid-Liquid Seperation

Plate And Frame Filter Press For Solid-Liquid Separation

The plate frame filter press has two forms of manual pressing, mechanical pressing and hydraulic pressing. Manual pressing is the screw jack push pressing plate pressing; Mechanical compression is the motor with H-type reducer, through the frame drive parts to push the pressing plate to press; Hydraulic pressing is a hydraulic station through the hydraulic cylinder on the frame to push the pressing plate to press. The two beams the thrust plate and the pressing device are connected together to form the frame, the frame is connected with the clamping plate and the pressing device, and the filter plate and the filter frame are arranged alternately between the pushing plate and the pressing plate, and the filter medium is sandwiched between the filter plate and the filter frame; The pressing device pushes the pressing plate, and presses all the filter plate and filter frame in the frame. After reaching the rated pressing force, filtration can be carried out. The suspension enters the filter chamber from the feed hole on the thrust plate (the filter frame and the adjacent filter plate constitute the chamber), the solid particles are trapped in the filter chamber by the filter medium, and the filtrate is discharged out of the machine through the outlet hole through the medium.

Plate and frame filter press can be used for suspension with large or nearly incompressible filter slag. Suitable suspension of solid particle concentration is generally less than 10%, the operating pressure is generally 03~06 mpa, special up to 3 mpa or higher. The filter area can be increased or decreased with the number of frames used. The plate frame is usually square, the inner side length of the filter frame is 320~2000 mm, the thickness of the frame is 16~80 mm, and the filter area is 1~1200 m 2. The plate and frame are pressed by manual screw, electric screw and hydraulic pressure. The plates and frames are made of wood, cast iron, cast steel, stainless steel, polypropylene and rubber.

PACKING AND DELIVERY

Our Engineering Project

FAQ:
-------1. How to buy your interested products?
You can provide us the water sources, water quality, flow rate and ground area, material requirements about your project (More details, please contact us).

-------2. How to pay?
L/C or T/T are acceptable.Usually, 50% payment in advance, 50% payment before delivery.

-------3. What is the delivery time?
It depends on order quantities. Generally speaking, the delivery time will be within 1 months.

-------4. How to pack the products?
We use standard export package.If you have special package requirements, we will pack as you required, but the fees will be paid by customers.

-------5. How to install after the equipment arriving destination?
We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.

-------6. How long is the validity?
The validity is 12 months after installation
