ATE Test Socket PEEK PEI PPS Torlon
  • ATE Test Socket PEEK PEI PPS Torlon
  • ATE Test Socket PEEK PEI PPS Torlon
  • ATE Test Socket PEEK PEI PPS Torlon
  • ATE Test Socket PEEK PEI PPS Torlon
  • ATE Test Socket PEEK PEI PPS Torlon
ATE Test Socket PEEK PEI PPS Torlon
ATE Test Socket PEEK PEI PPS Torlon
ATE Test Socket PEEK PEI PPS Torlon
ATE Test Socket PEEK PEI PPS Torlon
ATE Test Socket PEEK PEI PPS Torlon

ATE Test Socket PEEK PEI PPS Torlon

  • $10.90
    1-99 Piece/Pieces
  • $10.80
    100-999 Piece/Pieces
  • $10.70
    ≥1000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express
Port:
Shenzhen, Guangzhou, HongKong
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: CHINA
Productivity: 50000 pcs per day
Supply Ability: Enough
Payment Type: T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,DDU
Certificate: SGS RoHS Reach ISO9001
Transportation: Ocean,Land,Air,Express
Port: Shenzhen,Guangzhou,HongKong
Product Description
Product Description

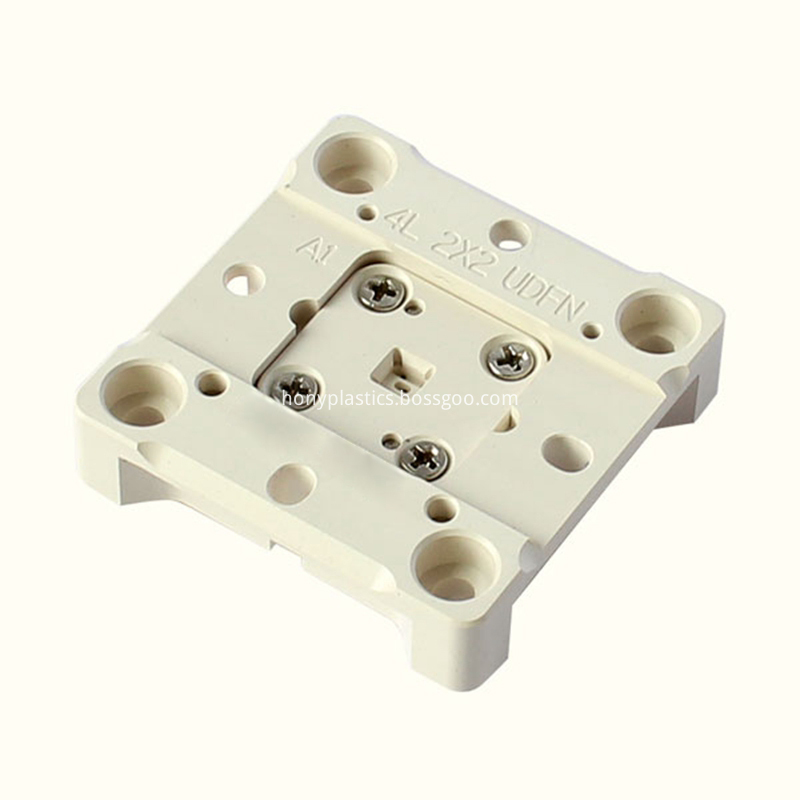

ATE Test Socket

Design ATE socket according to customer's requirements

Use on auto-test eqiupments and handler.

Pitch range from 0.30 to 1.0mm.

Pin amount: 2 and above.

Key material: Peek,Torlon.etc

Contact with top pogo pin

ATE-4



Socket Feature


Design according to customer's requirements.

High quality and high accuracy.

Offer timely after-sales service.

Offer on-site assemble and service.

Different structure design.

Change kit design service.



Socket Specification


Lid&house material:                              AL

Insulation material:                               PPS,PEI,PeeK,Torlon

Contact material:                                  POGO pin(spring probe),silicone rubber

Contact length:                                     Min2.5mm,Max7.2mm

Contact rated current:                          Max 6.2A

Contact temperature rating:                 -40 - +120℃

Contact preload:                                  0.15mm,0.2mm,0.25mm(optional)

Contact force:                                     Min 6gf, Max 55gf

DC resistace:                                       Min 0.1ohm, Max100mohm

Life span:                                           Min 50k cycles, Max 100k cycles

Contact application pitch:                   Min 0.17mm

Contact material:                               top/bottomplunger: Becu/Au plated

                                                      barrel: Pd Alloy, Alloy/Au plated

                                                           spring: music wire/Au plated/ Stainless steel





ATE-6


ATE Socket Sample



ATE-5
