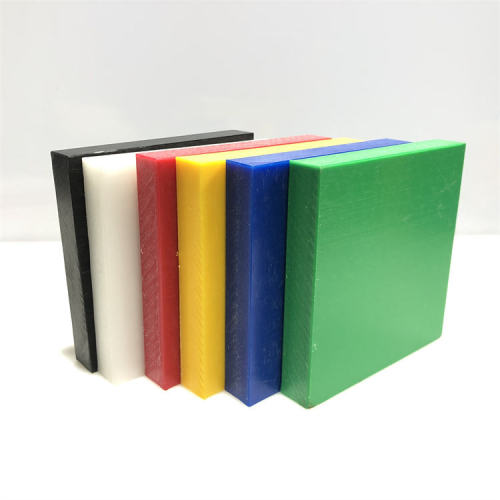

White Black Acetal Derlin POM sheets Delrin Sheet

White Black Acetal Derlin POM sheets Delrin Sheet

Get Latest Price

Min. Order:: 1 Kilogram

Min. Order:: 1 Kilogram

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN, HONGKONG, GUANGZHOU

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Productivity:	100000
Supply Ability:	100000
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,DDU,DDP
Certificate:	REACH CE ROHS
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN,HONGKONG,GUANGZHOU

Product Description

HONY®POM have good mechanical properties and rigidity, and close to the metal material. It’s an ideal replacement material of copper, cast zinc, steel, aluminum and other metal materials. Excellent fatigue resistance and creep resistance. Good abrasion resistance, self-lubricated and friction. High thermal stability, good chemical stability and excellent electrical insulation. And it can be used in temperatures ranging from -50℃ to +110℃.POM (polyoxymethylene, also known as polyacetal or acetal) is a semi-crystalline, thermoplastic material, which is characterised by its good mechanical properties, high dimensional stability and excellent sliding and wear behaviour.

POM sheet rod Acetal Standard Sizes, Colors, Grades, Types

Thickness (mm)	Width × Length (mm)
0.3mm-200mm	1000mm2000mm/720mm1200mm/620mm*1250mm

Acetal POM Sheet rod Advantages:

♦ High surface hardness, low abrasion consumption, impact fatigue and shock resistance, low coefficient friction, and self-lubricating, therefore, it is the first material choice for manufacturing gear.

♦ High mechanical strength and rigidity. Although the contraction rate is high, the dimension is stable.

♦ Good dielectric properties, solvent resistance, non-stress cracking, no porosity.

♦ Torsional resistance, it can be restored to the original shape when removing the external force.

♦ Low water absorption

Polyacetal rods POM-C Applications:

♦ Machinery industry used to produce gears, springs, bearings, wheels, connecting rod, impeller blades etc..

♦ Automobile industry

♦ Electronic and electrical appliances

♦ Others such as toys, windows, water tanks and washing basins

Acetal Sheets and Acetal Rods Physical Datasheet:

Item	POM plate
Type	extruded
Color	white
Proportion	1.42g/cm3
Heat resistance (continuous)	115℃
Heat resistance (short-term)	140℃
Melting point	165℃
Glass transition temperature	_
Linear thermal expansion coefficient	110×10-6 m/(m.k)
(average 23~100℃)
Average 23--150℃	125×10-6 m/(m.k)
Flammability(UI94)	HB
Tensile modulus of elasticity	3100MPa
Dipping into water at 23℃ for 24h	0.2
Dipping into water at 23℃	0.85
Bending tensile stress/ Tensile stress off shock	68/-Mpa
Breaking tensile strain	0.35
Compressive stress of normal strain-1%/2%	19/35MPa
Pendulum gap impact test	7
Friction coefficient	0.32
Rockwell hardness	M84
Dielectric strength	20
Volume resistance	1014Ω×cm
Surface resistance	1013 Ω
Relative dielectric constant-100HZ/1MHz	3.8/3.8
Critical tracking index(CTI)	600
Bonding capacity	+
Food contact	+
Acid resistance	+
Alkali resistance	+
Carbonated water resistance	+
Aromatic compound resistance	+
Ketone resistance	+
