Product Description

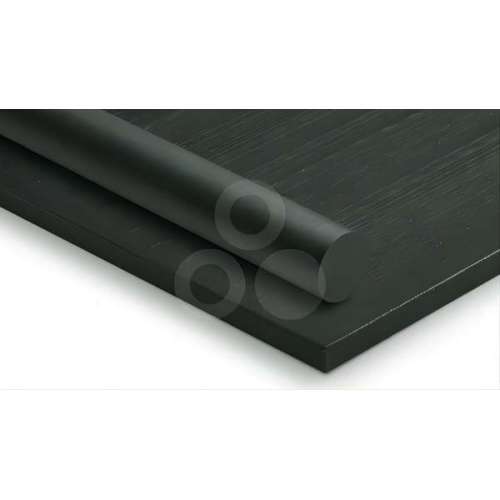

TECASINT 4021 black POLYIMIDE WITH 15 % GRAPHITE

Starting with the base polymer TECASINT 4011, TECASINT 4021 with 15% graphite has been developed. Thanks to the improved friction and wear properties, TECASINT 4011 is particularly suitable for tribological applications. It is also suitable for dry applications since the material is self lubricating.

TECASINT 4021 black1

FACTS

Chemical designation

PI (Polyimide)

Colour

anthracite

Density

1.49 g/cm3

MAIN FEATURES

Very high thermal and oxidative resistance

Very low water absorption

Very good slide and wear properties

High thermal and mechanical capacity

Good chemical resistance

High creep resistance

Resistance against high energy radiation

Sensitive to hydrolysis in higher thermal range

TARGET INDUSTRIES

Conveyor technology

Hot glass technology

Mechanical engineering

Precision engineering

Automotive industry

TECASINT 4021 black POLYIMIDE WITH 15 % GRAPHITE Technical Data Sheet

Mechanical Properties
MECHANICAL PROPERTIES	VALUE	UNIT	PARAMETER	NORM
Notched impact strength (Charpy)	3.8	kJ/m2	max 7.5 J	DIN EN ISO 179-1
Impact strength (Charpy)	24.4	kJ/m2	max 7.5 J	DIN EN ISO 179-1
Shore hardness	86		Shore D	DIN EN ISO 868
Tensile strength	93	MPa	50 mm/min	DIN EN ISO 527-1
Modulus of elasticity	4943	MPa	1 mm/min	DIN EN ISO 527-1
(tensile test)	4943	MPa	1 mm/min	DIN EN ISO 527-1
Flexural strength	131	MPa	10 mm/min	DIN EN ISO 178
Compression strength	208	MPa	10 mm/min	EN ISO 604
Compressive strain at break	36	%	10 mm/min	EN ISO 604
Elongation at break (tensile test)	3	%	50 mm/min	DIN EN ISO 527-1
Modulus of elasticity	4200	MPa	2 mm/min	DIN EN ISO 178
(flexural test)	4200	MPa	2 mm/min	DIN EN ISO 178
Compression modulus	2067	MPa	1 mm/min	EN ISO 604
Elongation at break (flexural test)	3.4	%	10 mm/min	DIN EN ISO 178
Compression strength	163	MPa	10mm/min, 10% strain	EN ISO 604
Thermal Properties
Glass transition temperature	260	C		DIN EN ISO 11357
Thermal expansion (CLTE)	3.9 - 5.4	10-5*1/K	50-200°C	DIN 53 752
Thermal expansion (CLTE)	5.3 - 7.3	10-5*1/K	200-300°C	DIN 53 752
Thermal expansion (CLTE)	7.5 - 10.5	10-5*1/K	300-350°C	DIN 53 752
Other Properties
Flammability (UL94)	V0	-	corresponding to	DIN IEC 60695-11-10;
Water absorption	0.16	%	24 h in water, 23°C	DIN EN ISO 62
Water absorption	0.53	%	24 h in water, 80°C	DIN EN ISO 62
