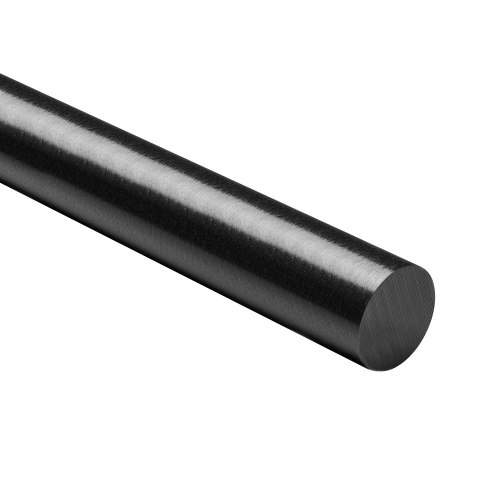

Ketron HPV PEEK sheet rod

Get Latest Price

Min. Order:: 1 Kilogram

Min. Order:: 1 Kilogram

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shenzhen, Guangzhou, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1000
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,CFR,EXW,DDU
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shenzhen,Guangzhou,Hongkong

Product Description

KETRON® Extruded HPV PEEK (BEARING GRADE) - Carbon fiber reinforced with graphite and PTFE lubricants, with the lowest coefficient of friction and the best machinability for all PEEK grades. An excellent combination of low friction, low wear, high LPV, low mating part wear and easy machining, make it ideal for aggressive service bearings.Bearing grade Ketron® HPV PEEK has excellent wear resistance in addition to the lowest coefficient of friction and the best machining characteristics of the filled PEEK stock shapes.

The addition of carbon fibers, PTFE and graphite to virgin PEEK results in a Ketron PEEK "Bearing Grade".
Its excellent tribological properties (low friction, long wear and high Pressure-Velocity capabilities) make this grade especially suited for bearing and wear applications.

Maximum Operating Temperature: 482°F Continuous

Features of Ketron® HPV - Bearing Grade PEEK: PEEK Rod

Very Low Coefficient of Friction

Low Wear Rate

High PV (Pressure Velocity)

Chemical Resistant

Black in Color

Typical Applications: Bearings, Rollers, Bushings and Wear Guides.

Rods are available in Standard 1 Meter (39.4") Lengths (39.4" = 3.28 Feet)

Plates are available in Standard 12" x 20.67" and 20.67" x 39.4" sizes

Polyetheretherketone (PEEK) Sheet MAIN CHARACTERISTICS

- Very high maximum allowable service temperature in air [250 °C continuously, up to 310 °C for short periods of time]

- High mechanical strength, stiffness and creep resistance, also at elevated temperatures
Excellent chemical and hydrolysis resistance

- Excellent wear and frictional behaviour

- Very good dimensional stability

- Excellent resistance to high energy radiation [gamma- and X-rays]

- Inherent low flammability and very low levels of smoke evolution during combustion

- Good electrical insulating and dielectric properties [except for Ketron HPV PEEK and CA30 PEEK]

KETRON® Extruded HPV PEEK (BEARING GRADE) application Polyetheretherketone bar
