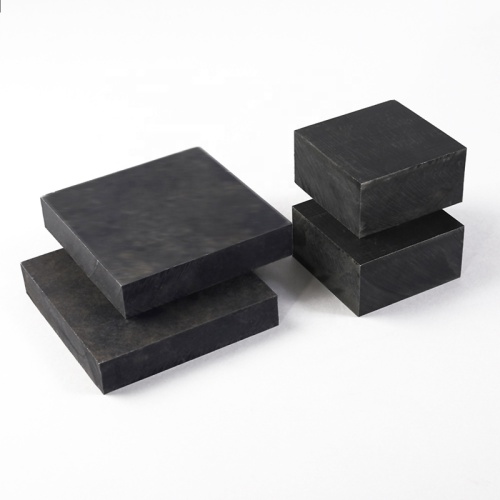

Conductive UHMWPE UPE sheet

Get Latest Price

Min. Order:: 1 Kilogram

Min. Order:: 1 Kilogram

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Guangzhou, HongKong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	Enough
Payment Type:	T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,DDU
Certificate:	SGS RoHS Reach ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou,HongKong

Product Description

HONY®Conductive UHMWPE Full Conductive UHMW offers the electrostatic dissipative properties required for UHMW components operating at high speeds and conveying rates. It still maintains the key characteristics of standard UHMW such as a high wear resistance and a low coefficient of friction.the volume and surface resistance is between 10^3~10^5.

Conductive UHMWPE Characteristics

♦ Light weight,good elasticity

♦ Weatherproof and waterproof

♦ Flame retardant

♦ Sound absorption

♦ Heat isolation

♦ Elastic and flexibility

♦ Static resistance

Conductive UHMWPE Application

* Chute, hopper, and truck bed liners

* Wear strips and Chain guide rails

* Star wheels and idler sprockets

* High speed conveyors

* Packaging machinery parts

* Food processing machinery parts

* Bumpers, pile guards, and dock fenders

UHMWPE can be made into gears, cams, impellers, rollers, pulleys, bearings, bearings, bushings, pins, gaskets, seals, flexible couplings, screws and pipe clamp,based on the excellent property of abrasion and impact resistance.These parts are used in textile machinery,paper-making machinery,packaging machinery.

Products range:

UHMWPE Sheet,UHMWPE Board,UHMW-PE Guide rail,UHMW-PE Strips,UHMW-PE Bar ,UHMWPE Panel,UHMWPE Plate,UHMW-PE Pad ,UHMWPE Filter Plate,UHMWPE Fender Pad,HDPE Pad,HDPE Plate,HDPE Panel

Our standard size :

2000*1000*(6-300) mm 3000*1500*(6-300) mm

3050*1220*(6-300) mm 4500*2000*(6-300) mm

4700*1200*(6-300) mm 5000*1300*(6-300) mm

The color of UHMWPE :

Black,Blue,Green,White,Yellow,Red,Orange or other customer color according to your requirements

Our Product type :

UHMWPE 3million molecule weight

UHMWPE 5million molecule weight

UHMWPE 7million molecule weight

UHMWPE 9million molecule weight

High Density Polyethylene

Different shape and size is also available

Characters of UHMWPE sheet

Extremely high anti-abrasion;

Excellent self-lubricating performance;

Good in resisting impact, flexibility;

Being excellent in resisting chemical corrosion(acid, alkali, salt);

Being free from toxin, smell or exudates;

Good electric resistance;

Low in water absorption;

Low coefficient of friction;

Resisting environment and anti-aging;

Resisting high and low temperature;

UV resistance

HONY®UHMWPE Properties Data Sheet

Property	Test Standard	Unit	PE300	PE500	PE1000
Density	ISO1183	g/cm3	0.98	0.98	0.98
Average Molecular Weight	---	g/mol	4.5*10^6	7.2*10^6	9.2*10^6
Water Absorption	---	%	＜0.01	＜0.01	＜0.01
Tensile Stress F(150/10)	ISO11542-2	MPA	0.22+-0.05	0.34+-0.07	0.51+-0.09
Yield Elongation	ISO291	%	≤20	≤20	≤20
Yield Stress	ISO527	MPA	≥17	≥17	≥17
Elongation at Break	ISO291	%	＞50	＞50	＞50
Tensile Modulus	ISO291 1mm/min	MPA	570	680	790
Ball Indentation Hardness	ISO2039	M/mm2	35	35	35
Shore Hardness D(15s value)	ISO868	---	60	60	61
Charpy Impact Strength(angle 14)	ISO11542-2	KJ/m2	≥90	≥120	≥150
Min.Working Temperature	---	℃	-269℃	-269℃	-269℃
Heat Deflection Temperature	ISO291	℃	80℃	80℃	80℃
Vicat Softening Point	ISO291	℃	130℃	130℃	130℃
Melting Point	ISO3146-C	℃	130~135	130~135	130~135
Linear Thermal Expasion Coefficient(23℃~80℃）	ISO11359	℃-1	2*10^-4	2*10^-4	2*10^-4
Thermal Conductivity 23℃	ISO291	---	0.41	0.41	0.41
Volume Resistance	ISO291	Ω.m	＞10^12	＞10^12	＞10^12
Surface Resistance	ISO291	Ω	＞10^12	＞10^12	＞10^12
Dielectric Strength	ISO291	KV/mm	45	45	45
Dielectric Constant ( under 100Hz 1mhz)	ISO291	---	2.1	2.1	2.1
Dielectric Constant ( under 100Hz 1mhz)	ISO291	---	3.0	3.0	3.0
Comparatice Tracking Index(CTI CTIM)	ISO291	---	600	600	600
Comparatice Tracking Index(CTI CTIM)	ISO291	---	600	600	600
Arc Resistance	ISO291	Rating	L4	L4	L4
