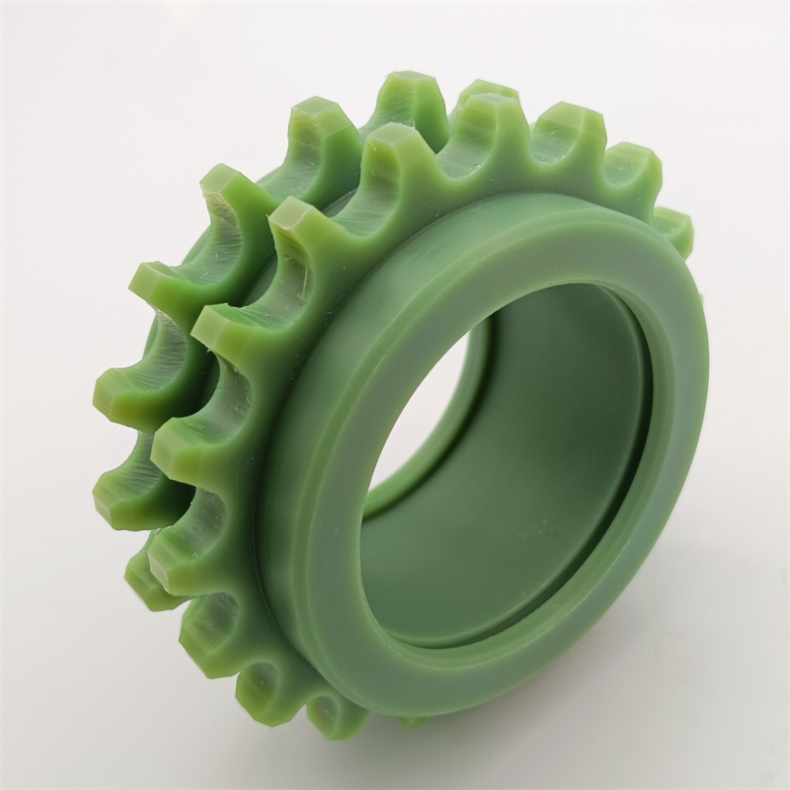

Nylon gears MC oil nylon gears

Nylon gears are used for transmission of equipment



Nylon gears are a kind of gears made of nylon material. Nylon has good overall performance, including mechanical properties, heat resistance, abrasion resistance, chemical resistance and self-lubricating, and low coefficient of friction, a certain degree of flame retardant, easy to process, suitable for filling with glass fibers and other fillers to enhance the rigidity, improve the performance and expand the scope of application, followed by overload protection, when the torque is too large, the gear itself is damaged, the interruption of the transmission to protect the lower level of the device or the personal safety, reduce losses. Personal safety, reduce losses.



Because nylon has non-toxic, lightweight, excellent mechanical strength, abrasion resistance and good corrosion resistance, it is widely used instead of copper and other metals in machinery, chemical industry, instrumentation, automotive and other industries in the manufacture of bearings, gears, pump leaves and other parts. Polyamide melt spinning into silk has high strength, mainly do synthetic fibers and can be used as medical suture



Oil nylon it is the true meaning of self-lubricating nylon, oil nylon in the casting process to form a liquid lubrication system, so that the service life of the oil nylon bearings significantly improve, to reach the ordinary nylon bearings life of 6 times and phosphor bronze bearings life of 25 times! The lubricant contained in oil nylon will not be lost, adsorbed or depleted, and does not need to be re-added. The lubricant in oil nylon greatly broadens the scope of use of nylon, especially for some parts that can not be lubricated.



Density: 1.15g/cm3



Impact Strength: 8.5kJ/m2



Tensile Strength: 80MPa



Shore D Hardness: 80-85



Compression Strength: 110MPa



Friction Coefficient: 0.1-0.3 on steel surfaces



Continuous Operating Temperature: -80-125 degrees



Various types of MC nylon and commonly used bearing alloys



In the M-2000-type abrasion tester for the test results in the absence of oil lubrication
