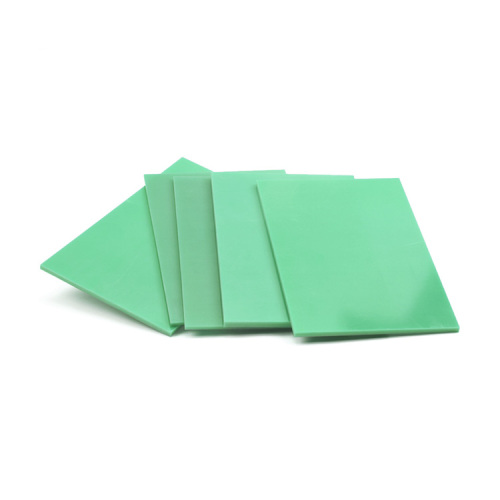

HONY®FR4 electric 0.4mm-3.2mm high quality epoxy fiberglass resin

FR4 is a thermosetting industrial laminate consisting of a continuous filament glass cloth material with an epoxy resin binder.this product,first introduced in the 1950's,has characteristics of high strength,excellent electrical properties and chemical resistance.These properties are maintained not only at room temperature but also under humid or moist conditions

Product Features:

1. The flame retardant grade is UL94 V0

2. F grade Heat resistance and heat resistance (120 min) reaches to 180 ℃

3. High mechanical performances (bending, compression and stretching of transverse strength is above 330Mpa)

4. High dielectric properties of th e oil (25 ℃ in the vertical dielectric strength of 16 kv/mm).

5. We can press, cut and process the sheet according to customer's requirements and provide insulation accessories directly.

Product Application:

Motor control, communication equipments

Separator between the magnetic ring inductors and the base of the bottom

Thermal power devices

Also suitable for high voltage transformer and switch cabinet, high temperature, high-power welder even in wet environment

Material : Fiber Glass

Size : 1020 x 1220 mm / 1020 x 2040 mm

1220 x 2040 mm / 1220 x 2440 mm

Surface : Polished Surface , Matt Surface

Sample : Available

Custom services : Available

NOTE:

(1)Enough stock of raw Fr4 epoxy fiberglass board

(2)Cutted into small pieces

(3)CNC router machine programming

(4)OEM products weighted on electronic balance

(5)Products sealed in transparent PE bags

(6)Cartons of Fr4 products ready to be delivered

HONY®FR4/G10 Properties Data Sheet

Standard	GB/T 1303-2009 / IEC60893-2003
Color	Natural/Green/Yellow/Black/Customizable
IEC	EPGC201	EPGC202	EPGC203	EPGC204	EPGC206	EPGC208
NEMA	/	FR4	G10	FR5	G11	/
Density(g/cm3)	1.8~1.95 g/m3
Vertical Layer Bending Strength(MPa)	≥340MPa
Parallel Layer Impact Strength(KJ/m2)	38KJ/m2
Vertical Layer Electrical Strength(KV/m2)	≥14.2Kv/mm
Parallel Layer Breakdown Voltage(KV)	≥35Kv	≥35Kv	≥40Kv	≥35Kv	≥40Kv	≥35Kv
Dielectric Constant(50Hz)	≤5.5
Delectric Loss Factor(50Hz)	≤0.04
Insulation Resistance After Immersion(Ω）	≥5.0*1010Ω
Proof Tracking Index (PTI)	/	/	/	/	≥200	/
Combustibility	/	V-0	/	V-0	/	/
Temperature Index	130	130	155	155	155	180
Water Absorption(1-20mm Thickness)	17~73mg

We are confidents to provide with CUSTOMIZED high quality Epoxy glass fiber Fr4/g10 products by our professional manufacturing team, manufacturing lines and experienced CNC router operators who have been engaged in this industry for more than 10 years.
