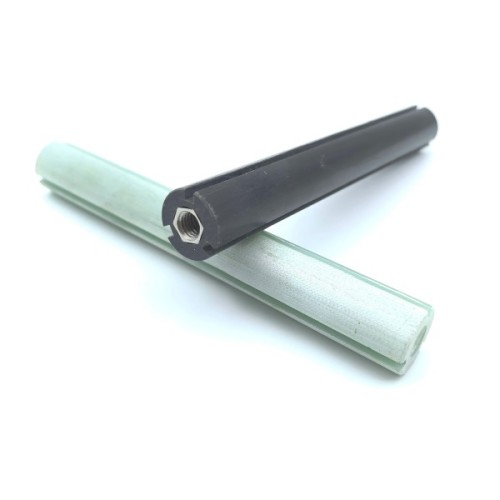

Customizable epoxy fiberglass rods

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Guangzhou, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1000
Payment Type:	T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,DDU
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou,Hongkong

Product Description

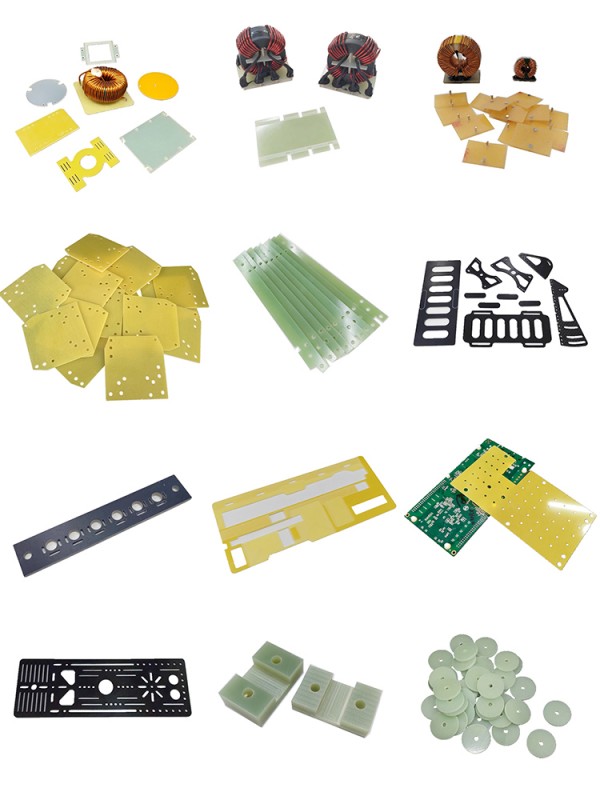

1. Spacer for the choke and inductor coil

The epoxy glass fiber sheet serves as an insulation spacer for the upper choke.

The common-mode inductance is divided into high voltage AC mode and output DC mode. The voltage between the two copper wires determines whether to use the spacer. If the lead string is added and the casing voltage is not high enough, the spacer shall not be added. But considering the consistency, it is more appropriate to have an insulation spacer in bulk production.

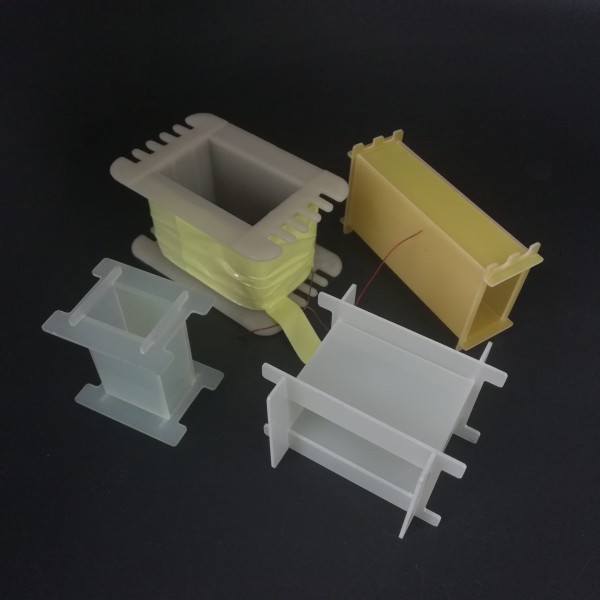

2. Baseboard for Transformer Bobbin

The functions of the transformer’s bobbin are as follows:

(1)To provide enough space for twining copper wires

(2)To fix the magnetic core of the transformer

(3)To support wires twining of the transformer by its wire channels

(4)To serve as a conductive component after it is soldered with tin and connected to PCB sheet

(5)To decide the direction of the transformer by its chamfer
