Customerized Fr4/G10 insulation gasket Micarta Fr4 G10 epoxy fiber glass is epoxy sheet, also known as insulating film, fiberglass sheet, and epoxy sheet, it is made of alkali-free glass cloth impregnated with epoxies by processing under heat and pressure. It possesses the character high temperature resistance, high intensity, flame retardant grades, ul94-v0, high mechanical properties and dielectric properties, good heat resistance, good smoothness, etc.
Product Type: epoxy fiberglass laminate film
Material: flame retardant epoxy resin + glass fiber fabric

Main features

1) flame retardancy.

2) high voltage resistance.

3) moisture resistance.

4) heat resistance.

5) temperature resistance: 150-180

6) good flatness, smooth surface, no pits.

Application

In mechanical, electrical and electronic high insulation structure parts

Used in electric insulation requirement.

Chemical machine parts

General machinery parts and gear, generators, pads, base, baffle

Generator, transformer, lamp, inverter, motor.

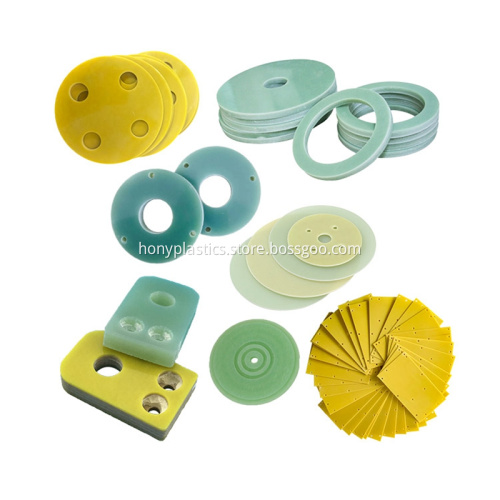

Fr4 Epoxy Resin Fiberglass Gaskets, Insulation Fr4 Parts Washer1(1)

Fr4 Epoxy Resin Fiberglass Gaskets, Insulation Fr4 Parts Washer2(1)

Fr4 Epoxy Resin Fiberglass Gaskets, Insulation Fr4 Parts Washer3(1)

Fr4 Epoxy Resin Fiberglass Gaskets, Insulation Fr4 Parts Washer4(1)

Fr4 Epoxy Resin Fiberglass Gaskets, Insulation Fr4 Parts Washer5(1)

Item			Value
Specific gravity		G/cm & sup3;	1,70 ~ 1,90
		° C	155
Bending strength min		Longitudinal	MPA 343,2
Bending strength min		Cross	MPA 284,4
Tensile strength min		Longitudinal	MPA 294,2
Tensile strength min		Cross	KJ/sqm 147,1 KJ/sqm 98,1
Impact resistance min	Cross Longitudinal		KJ/sqm 147,1 KJ/sqm 98,1
Surface resistance min	Under normal condition After immersion in water	Ohm	Ω 1x1013 Ω 1x1011
Volume resistance min	Under normal condition After immersion in water	Ohm cm	Ω cm 1x1013 Ω cm 1x1011
Insulation Resistance parallel To laminate ionmin	Under normal condition After immersion in water	Ohm	Ω 1x1010 Ω 1x108
Dielectric loss Max	50Hz		KV/mm 0,05
Impact strength Perpendicular to sheets (At 90 ± 2 ° C in transformer oil) Min	Thick 0,5 ~ 1mm		KV/mm 22,0
	Thick 0,5 ~ 1mm		KV/mm 20,0
	Thick 0,5 ~ 1mm		KV/mm 18,0
	Leaf with thick more than 3mm will be edited up to 3mm from one side		KV/mm 18,0
Breakdown voltage parallel to sheets (At 90 ± 2 ° C in transformer oil)	Min	KV	30,0

FR-4 fiber glass plastic laminated insulating plate, plastic fiber glass

1) FR-4 epoxy glass fabric was the plate laminated products, the special electronic materials like cloth dipped in epoxy phenolic resin by high temperature & #12289; high pressure and hot pressing.

2) thermal grade: Class B.

3) thickness: 0,2-50mm

4) size: width/length (mm) 1020*2040mm, 1020*1200mm

5) color: green/black

Fr4 Epoxy Resin Fiberglass Gaskets, Insulation Fr4 Parts Washer31(1)
