ESD antistatic PEI sheet

HONYESD®Ultem PEI ESD Sheet It is an antistatic material modified with PEI as the base material. It not only maintains the good mechanical properties, heat resistance and creep resistance of PEI, but also increases the antistatic effect in high temperature environments, with an antistatic value of 106-109 , The long-term use temperature is 200℃.

Product features: anti-static, excellent dimensional stability, electrical insulation, flame retardant, low combustion smoke, high temperature resistance, radiation resistance, and high mechanical properties.

Scope of application: electronic and electrical semiconductors, sensitive electronic components, mechanical transmission parts, precision mechanical parts, electronic and electrical parts, dust covers for clean equipment, etc.

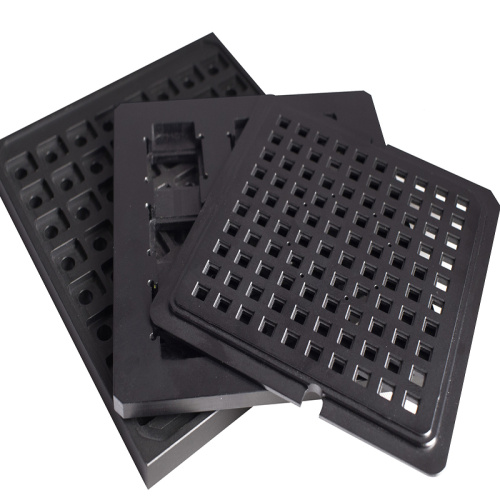

Application: semiconductor test fixture, semiconductor liquid crystal manufacturing equipment parts, jigs in the wafer processing process, sensitive electronic components, dust cover of clean equipment, electronic/electrical semiconductor transportation equipment, etc.

Colour: Black

Specification: Plate: Thickness×Width×Length 6-100mm×620mm×1230mm

                    Bar: Diameter×Length 6-150mm×1000mm

Remark:

1."+" Tolerable ,   “-”Intolerable , "0"  Depends on the situation

2. The above data is obtained from raw material test data, which is not completely consistent with the performance of the finished product, and the uniqueness of the data is not guaranteed
